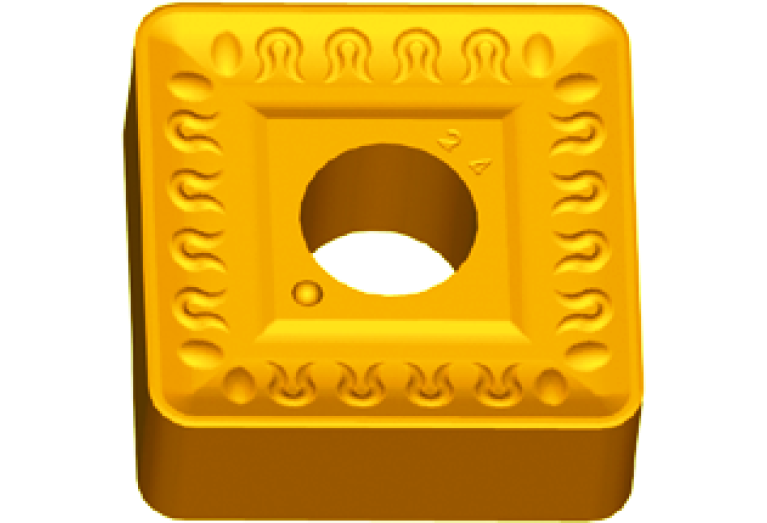

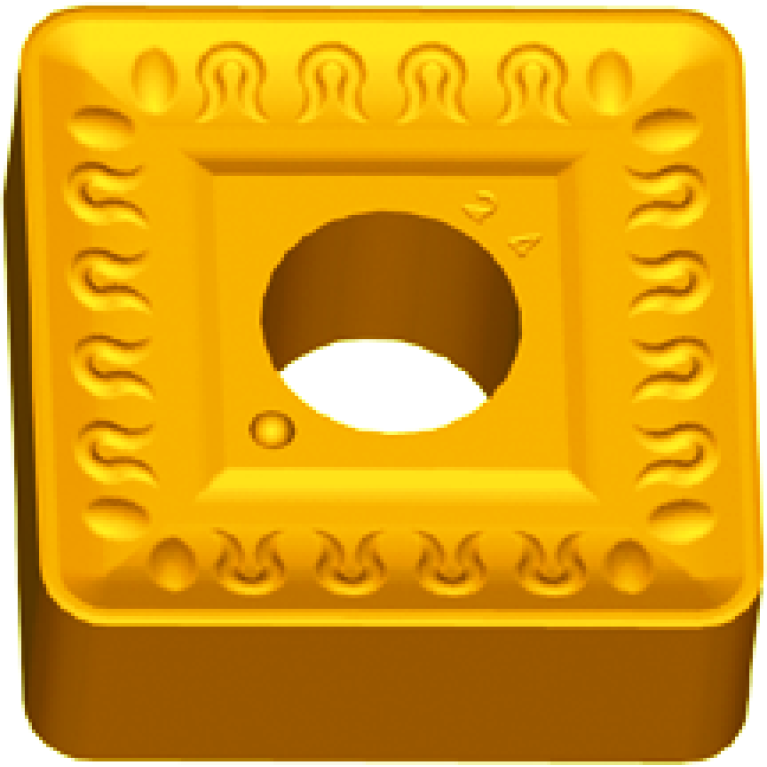

SNMM250732-ER YBM253

Артикул: SNMM250732-ER YBM253

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiCN,Al2O3

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

0.58 kg

DIN

SN2507322N

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YBM253

GRDPRIO Standard designation of the grade main application

M10-M35

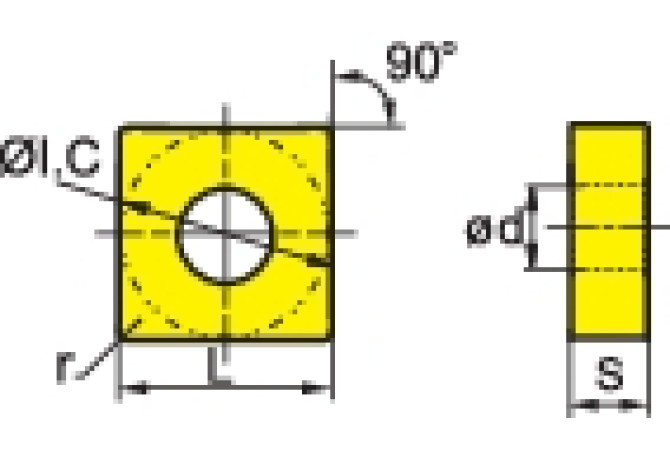

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507322N

Name Identifying order number

SNMM250732-ER YBM253

RE Corner radius

3.2 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

TCINS Tolerance class insert

Working process

No working processes available
