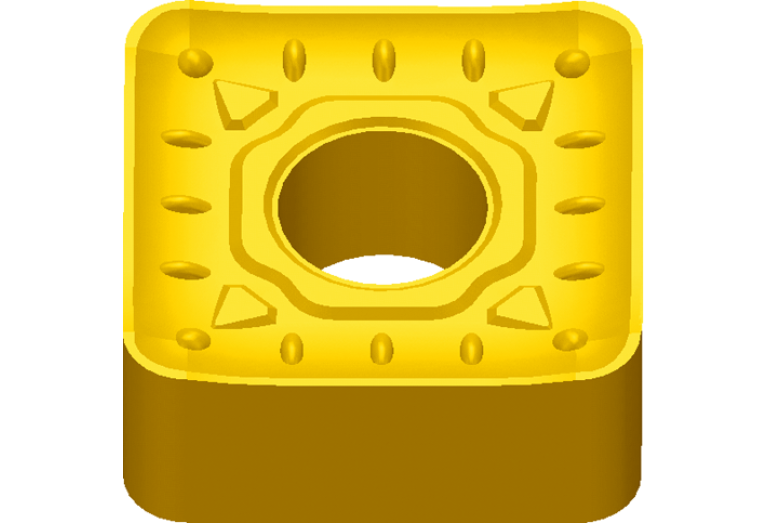

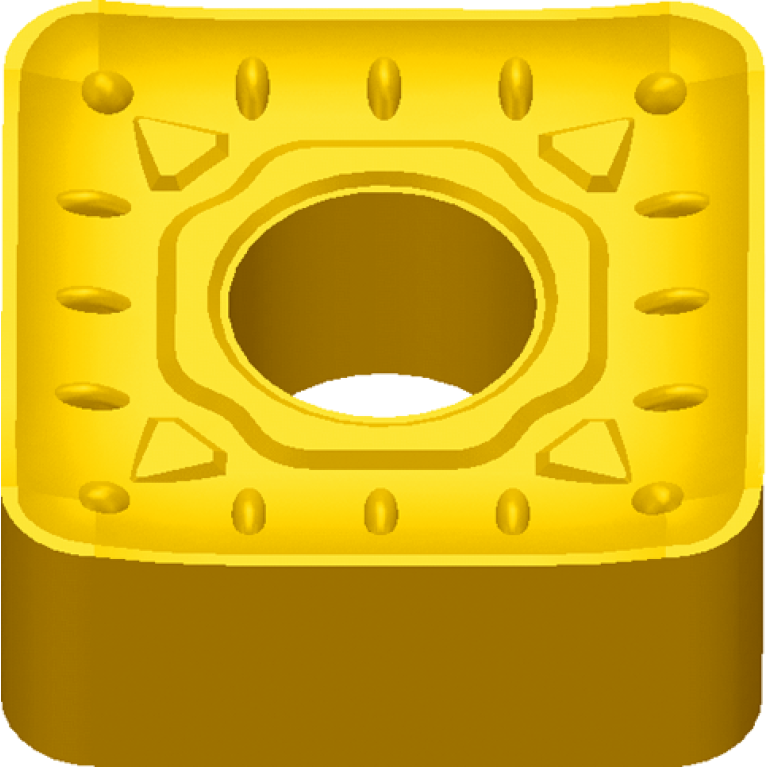

SNMM250724-DR YB6315

Артикул: SNMM250724-DR YB6315

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD coating grade

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

0.5855 kg

DIN

SN2507242N

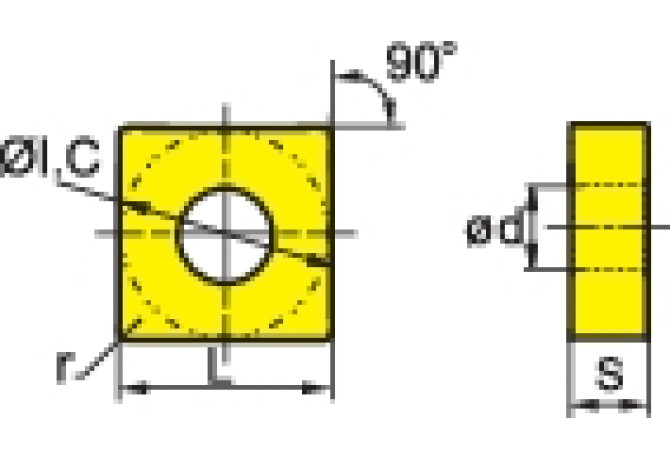

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YB6315

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

25.4 mm

ID Identifying order number

SNMM250724-DR YB6315

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507242N

RE Corner radius

2.4 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

TCINS Tolerance class insert

Working process

No working processes available
