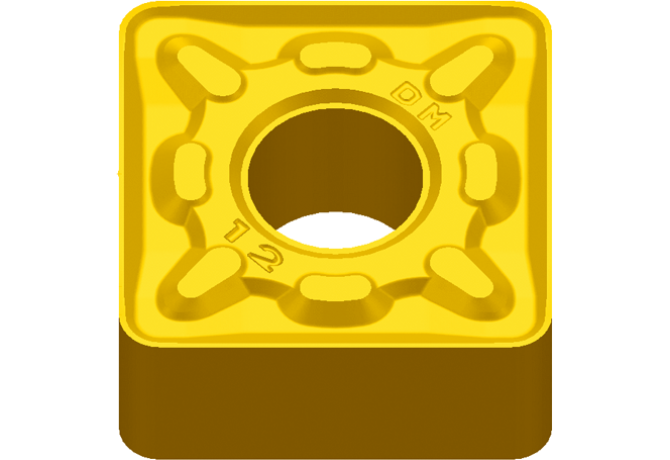

SNMG120416-DM YB6315

Артикул: SNMG120416-DM YB6315

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD coating grade

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

0.09 kg

DIN

SN1204162N

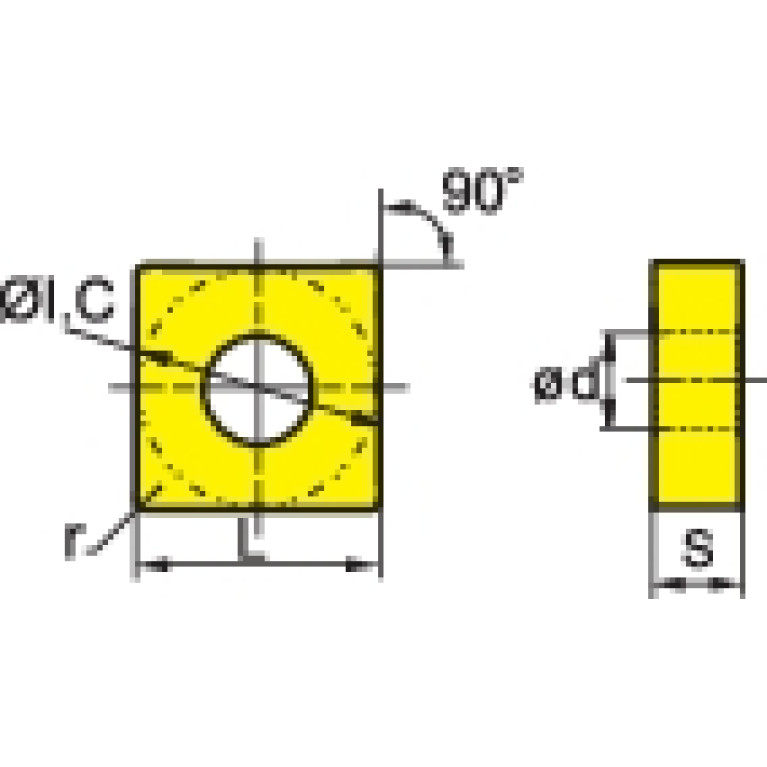

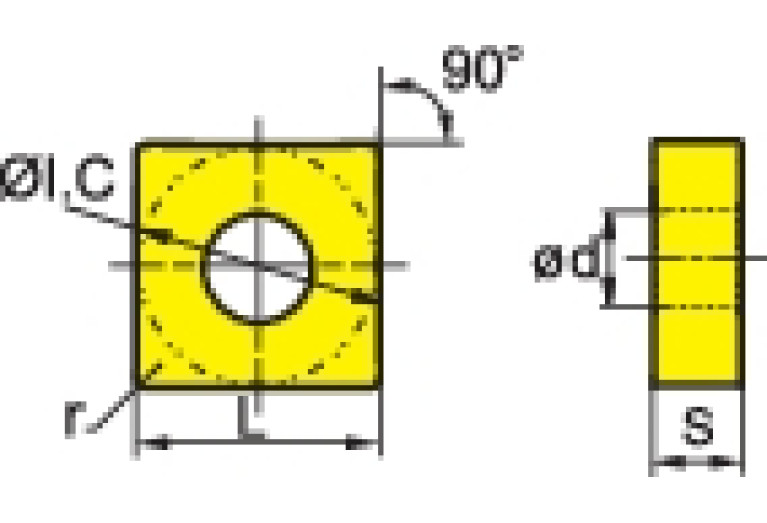

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YB6315

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

12.7 mm

ID Identifying order number

SNMG120416-DM YB6315

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204162N

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
