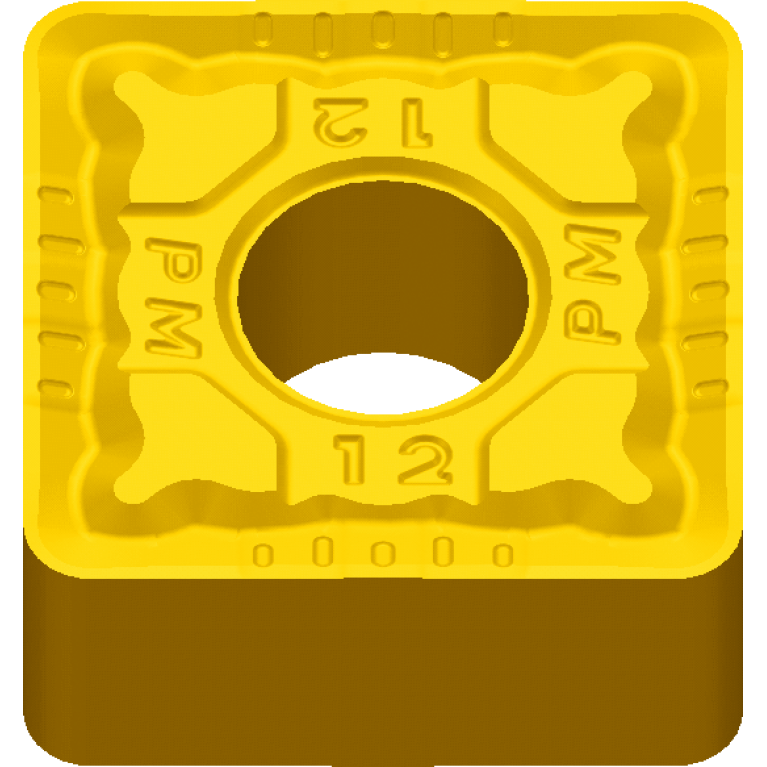

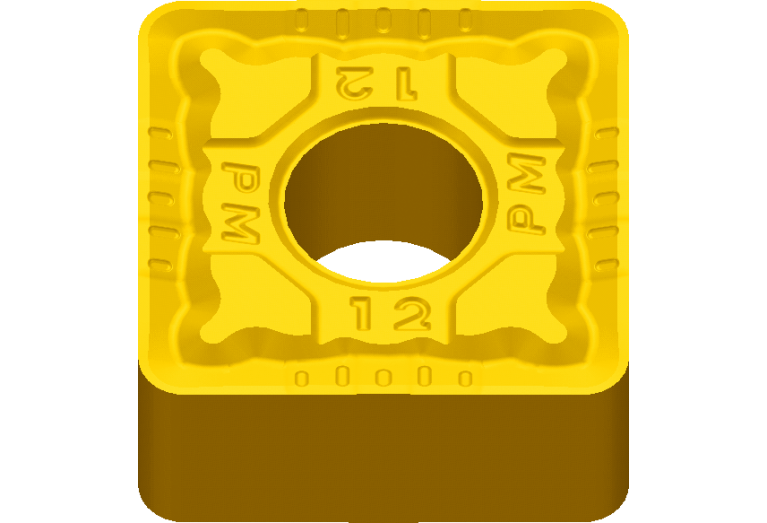

SNMG090308-PM YBC251

Артикул: SNMG090308-PM YBC251

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

MT-TiCN,Al2O3,TiN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

0.033 kg

DIN

SN0903082N

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YBC251

GRDPRIO Standard designation of the grade main application

P10-P30

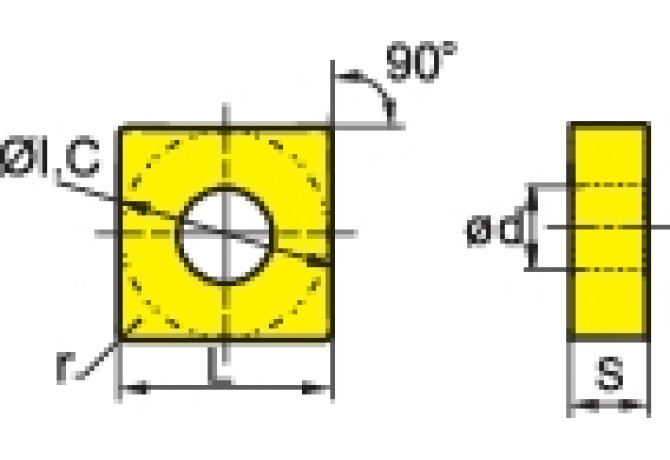

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

SNMG090308-PM YBC251

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903082N

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
