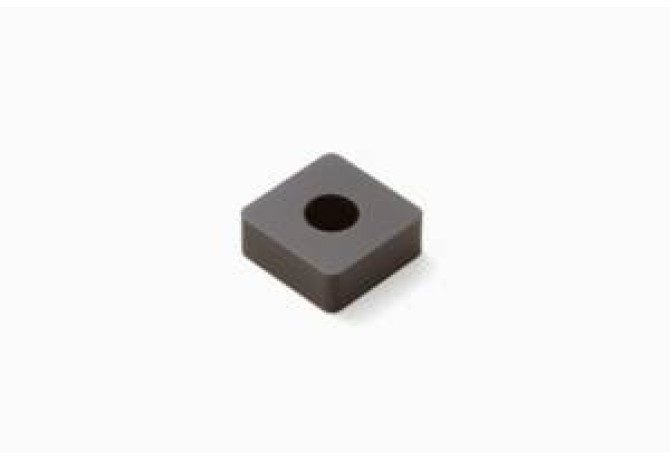

Главная Каталог продукции Toolunited 17 201-02 - Square insert SNMA150612 TK1001

SNMA150612 TK1001

Артикул: 02781176

В наличии

В корзину

Описание

Характеристики

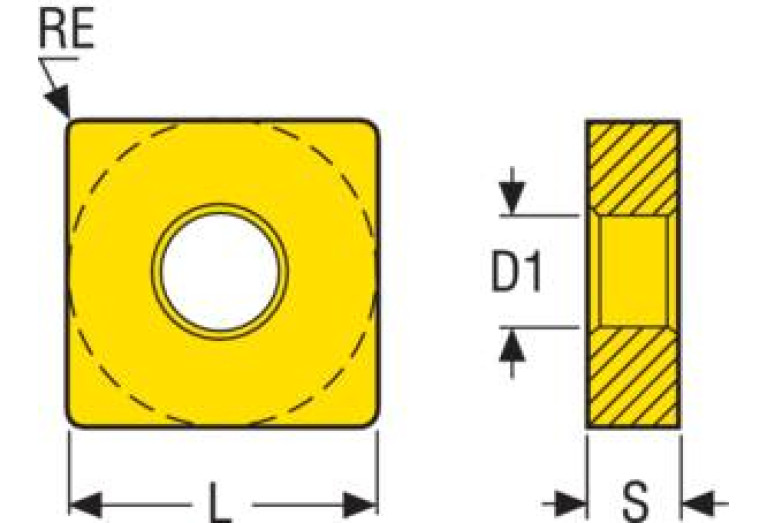

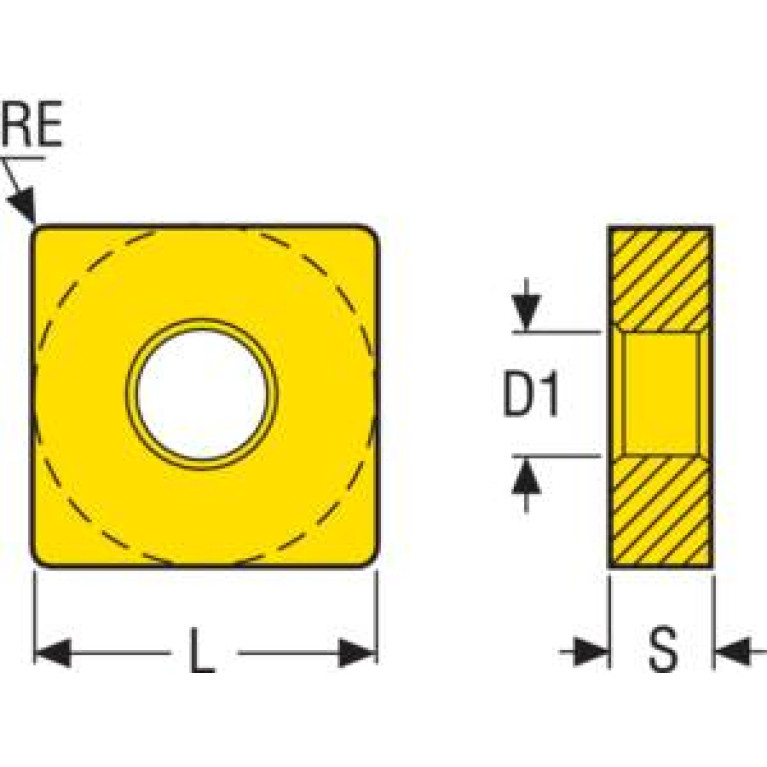

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SN1506122N

EPSR Insert included angle

90 Degree

FamilyProducts

SNMA150612 TK1001

GRDMFG Grade manufacturers designation

TK1001

IC Inscribed circle diameter

15.875 mm

ID Technical product number

02781176

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SN1506122NA$$12

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LE Cutting edge effective length

14.7 mm

LOC-03 ISO

ISO$SN1506122NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506122N

MIID Master insert identification

SNMA150612 TK1001

Name Identifying order number

SNMA150612 TK1001

NameAnsi Identifying order number inch alternative

SNMA543 TK1001

NOI Insert index count

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMA150612

STDDESAnsi Standard designation ANSI

SNMA543

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.1 kg
