SNGN150720 YZB221

Артикул: SNGN150720 YZB221

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating / Покрытие

ohne

COMPC Company code

ZCC - ZCC Cutting Tools

Delivery state

NL - Discontinued

DIN

SN1507201N

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YZB221

GRDPRIO Standard designation of the grade main application

K01-K30

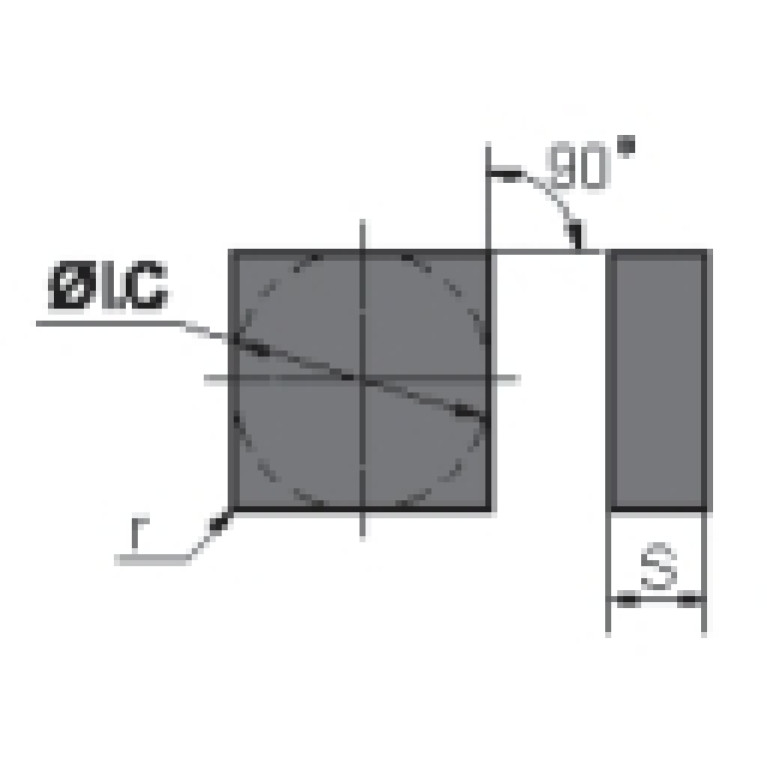

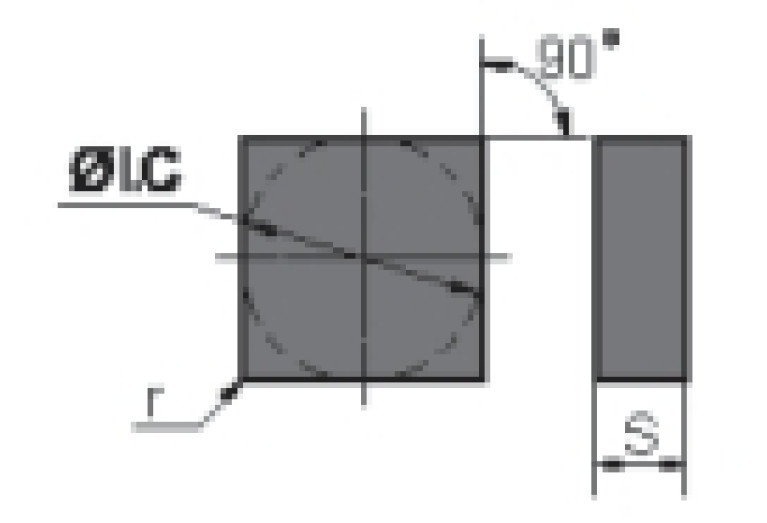

IC Inscribed circle diameter

15.875 mm

ID Identifying order number

SNGN150720 YZB221

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1507201N

RE Corner radius

2 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

TCINS Tolerance class insert

Working process

No working processes available
