Главная Каталог продукции Toolunited 17 201-02 - Square insert SNGN120712T02020 WCK10

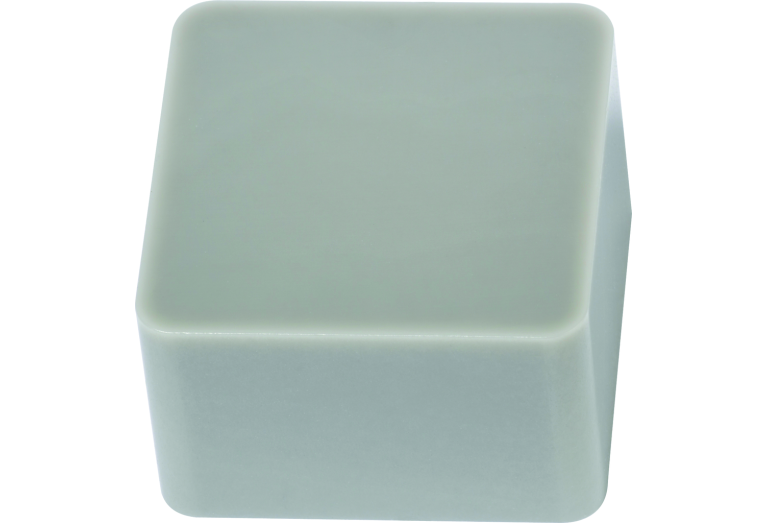

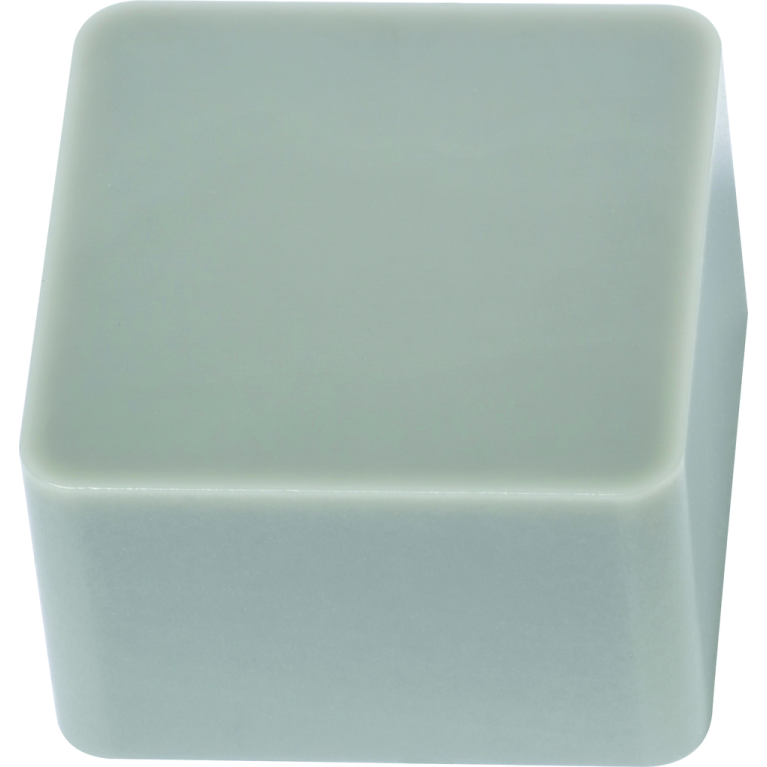

SNGN120712T02020 WCK10

SNGN120712T02020 WCK10 SNGN120712T02020 WCK10 SNGN120712T02020 WCK10 SNGN120712T02020 WCK10

SNGN120712T02020 WCK10

Walter
Артикул: 7349631
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
T0202
CECC Cutting edge condition code
T - Chamfered
COATN Coating / Покрытие
Siliziumnitrid Si3N4
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
12/1/2023
DIN
SN1207121N
EPSR Insert included angle
90 Degree
FamilyProducts
Ceramic – Negative square SNGN
GRDMFG Grade manufacturers designation
WCK10

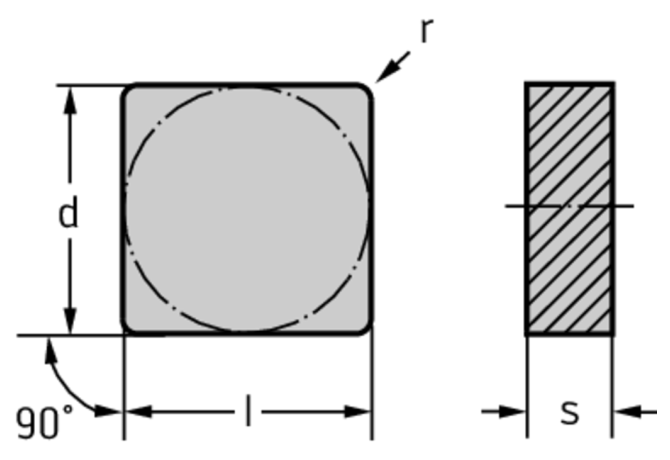

IC Inscribed circle diameter
12.7 mm
ID Technical product number
7349631
IFS Insert mounting style code
1 - Without bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$SN1207121NB$$12
ISYC Subclass
201-02 - Square insert
L Cutting edge length
12.7 mm
LOC-03 ISO
ISO$SN1207121NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1207121N
MIID Master insert identification
SNGN120712 WCK10
Name Identifying order number
SNGN120712T02020 WCK10
NameAnsi Identifying order number inch alternative
SNGN453T02020 WCK10
NOI Insert index count
4
RE Corner radius
1.2 mm
S Insert thickness
7.938 mm
S1 Insert thickness total
7.938 mm
STDDES Standard designation
SNGN120712
STDDESAnsi Standard designation ANSI
SNGN453
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
Working process
No working processes available
WT Weight of item
0.006 kg
