SNEX1204ENN KM1

Артикул: SNEX1204ENN KM1

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CHW Corner chamfer width

10 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state

LH - Stocked

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT SNEX

GRDMFG Grade manufacturers designation

KM1

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

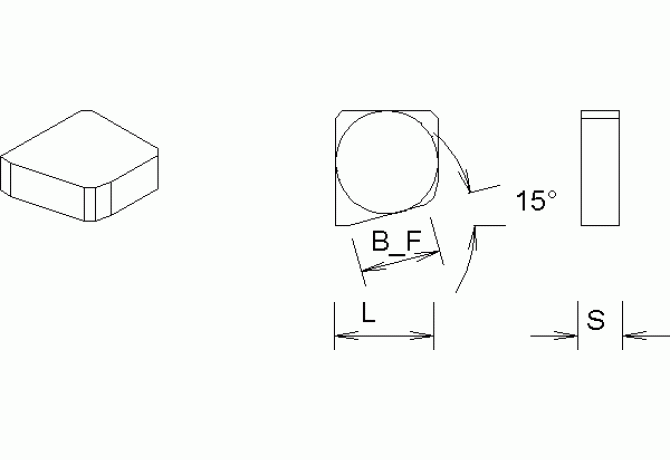

L Cutting edge length

12.7 mm

Name Identifying order number

SNEX1204ENN KM1

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNEX1204ENN

TCINS Tolerance class insert

Working process

No working processes available
