SNEG1907ANR-GR YBG101

Артикул: SNEG1907ANR-GR YBG101

В наличии

В корзину

Описание

Характеристики

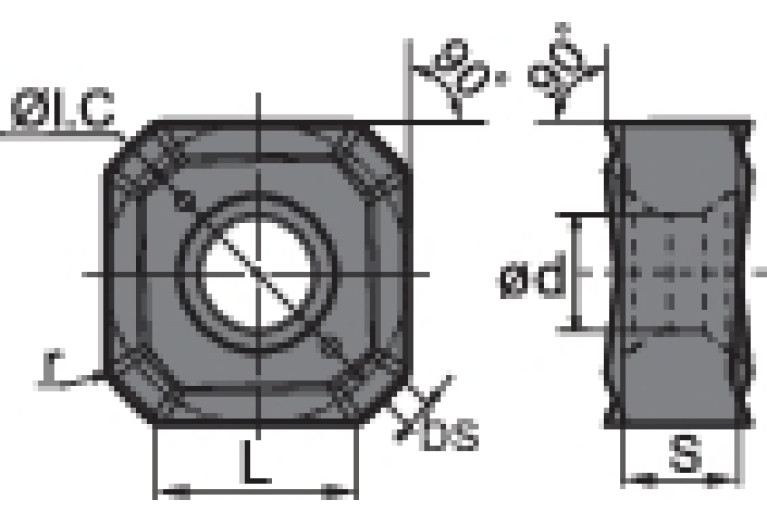

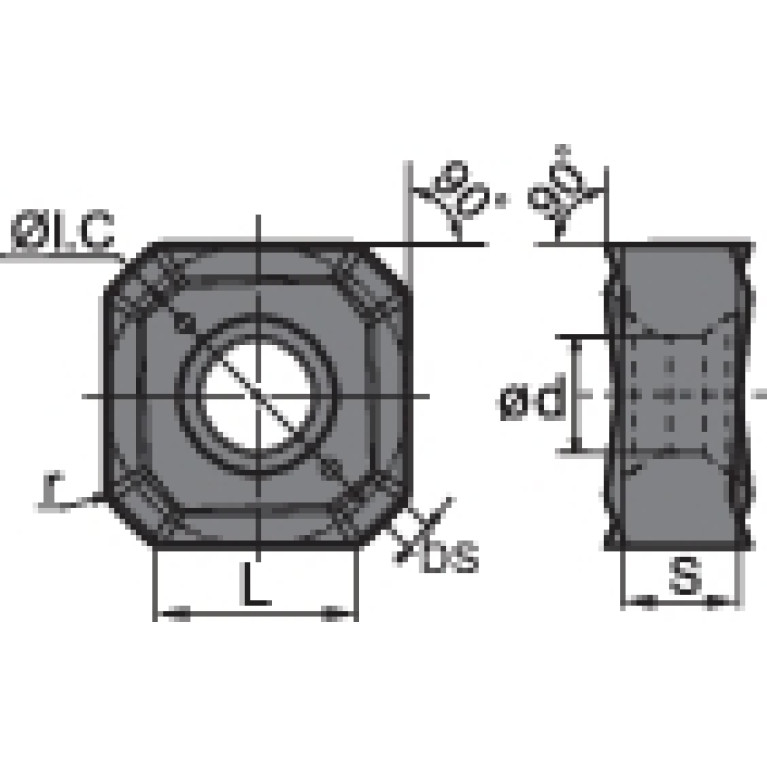

AN Clearance angle major

0 Degree

BS Wiper edge length

1.67 mm

CBMD Chip breaker manufacturers designation

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

7.2 mm

Delivery state

NL - Discontinued

DIN

ZCC-SNEG1907

EPSR Insert included angle

90 Degree

FamilyProducts

SN** negative insert

GRDMFG Grade manufacturers designation

YBG101

IC Inscribed circle diameter

19 mm

ID Identifying order number

SNEG1907ANR-GR YBG101

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

19 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ZCC-SNEG1907

RE Corner radius

1 mm

S Insert thickness

7 mm

S1 Insert thickness total

7 mm

TCINS Tolerance class insert

Working process

No working processes available
