SFHT 2006 DG-L BWN20M

Артикул: SFHT 2006 DG-L BWN20M

В наличии

В корзину

Описание

Характеристики

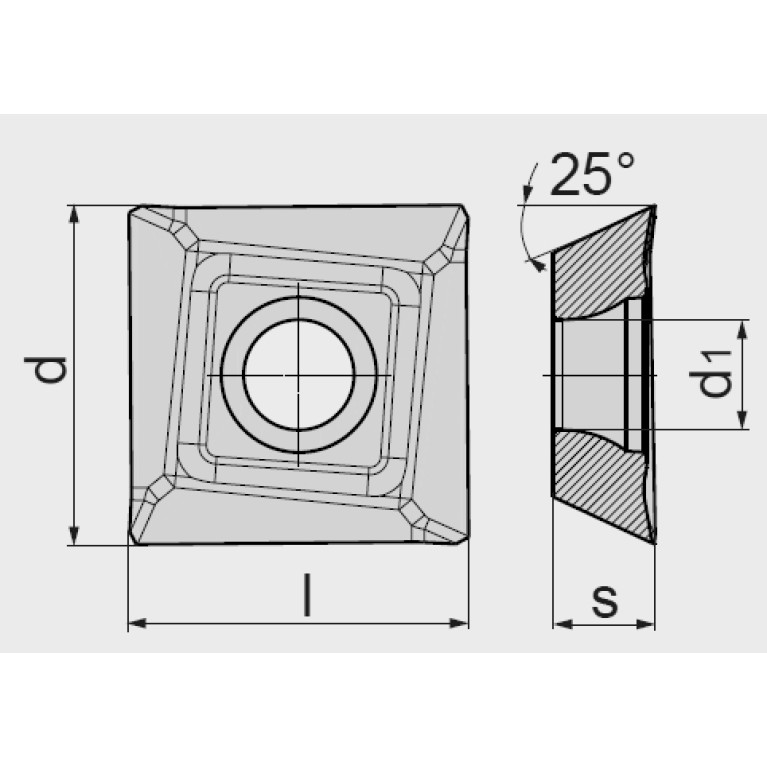

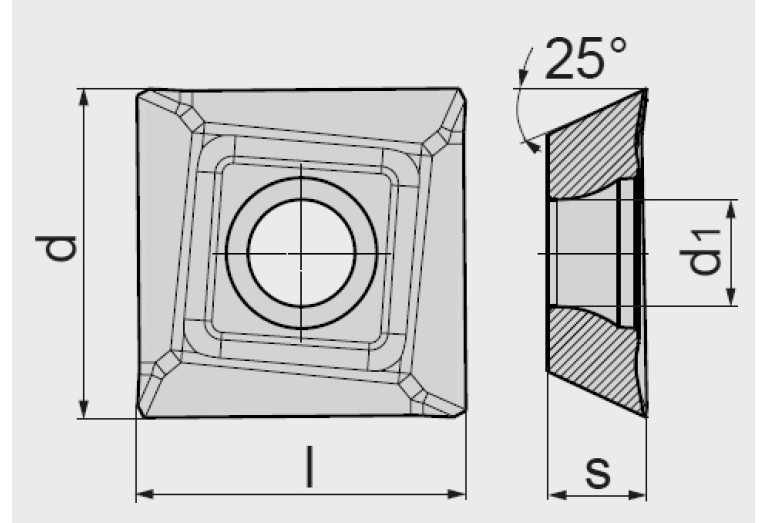

AN Clearance angle major

25 Degree

AS Clearance angle wiper edge

30 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.5 mm

Delivery state valid from

12/30/2016

DIN

SF2206DG3L

EPSR Insert included angle

90 Degree

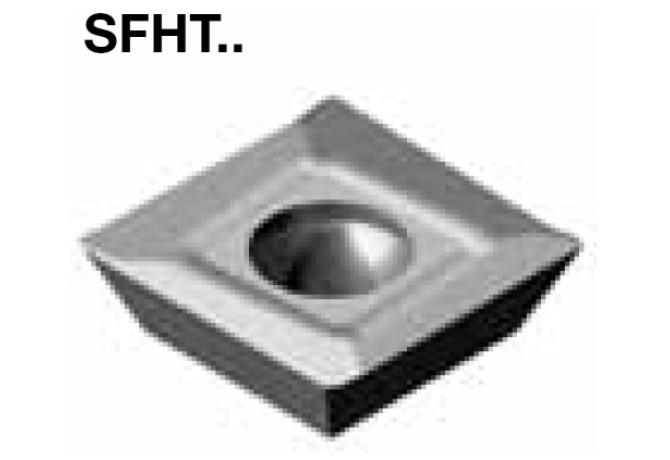

FamilyProducts

SFHT.. Frässchneidplatte

GRDMFG Grade manufacturers designation

BWN20M

GRDPRIO Standard designation of the grade main application

HW-N20

IC Inscribed circle diameter

20 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

60 Degree

L Cutting edge length

20 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SF2206DG3L

Name Identifying order number

SFHT 2006 DG-L BWN20M

NOI Insert index count

RE Corner radius

60 mm

S Insert thickness

6 mm

S1 Insert thickness total

6 mm

STDDES Standard designation

SFHT2006DGL

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling
