SEKX1204AFEN K110M

Артикул: 1203899

В наличии

В корзину

Описание

Характеристики

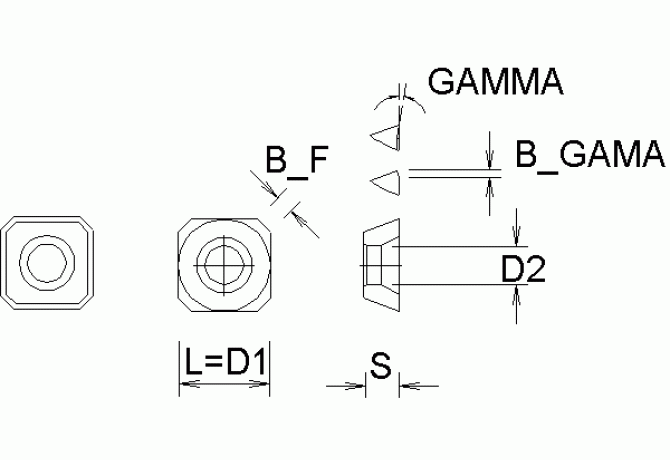

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

2.4 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.7 mm

Delivery state valid from

1/4/2011

DIN

KH-WP SEKX1204

EPSR Insert included angle

90 Degree

FamilyProducts

ISO INSERT MILLING

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K110M

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1203899

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP SEKX1204

Name Identifying order number

SEKX1204AFEN K110M

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEKX1204AFEN

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
