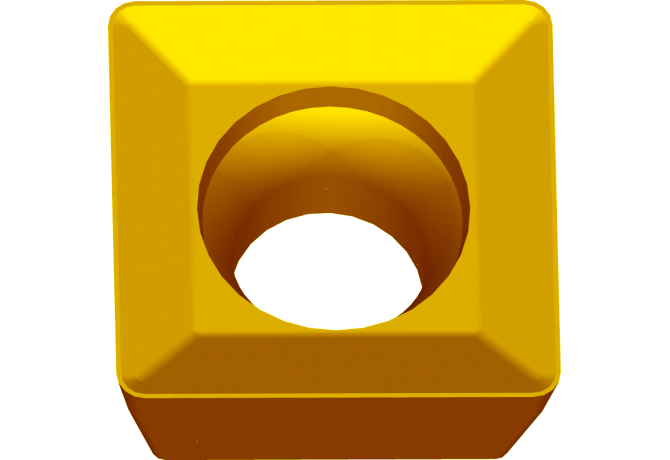

Главная Каталог продукции Toolunited 17 201-02 - Square insert SDMT090308 YBM251

SDMT090308 YBM251

Артикул: SDMT090308 YBM251

В наличии

В корзину

Описание

Характеристики

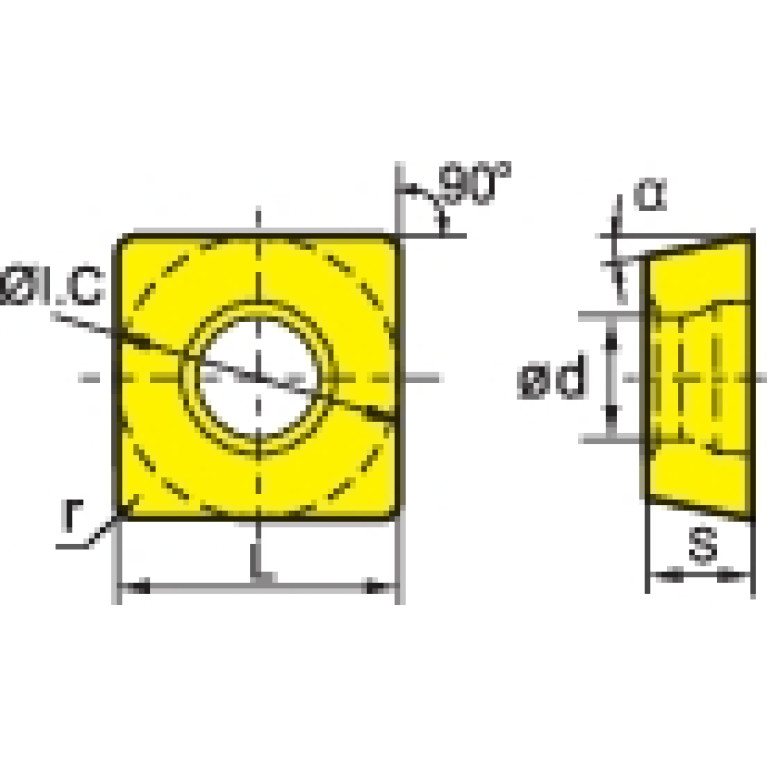

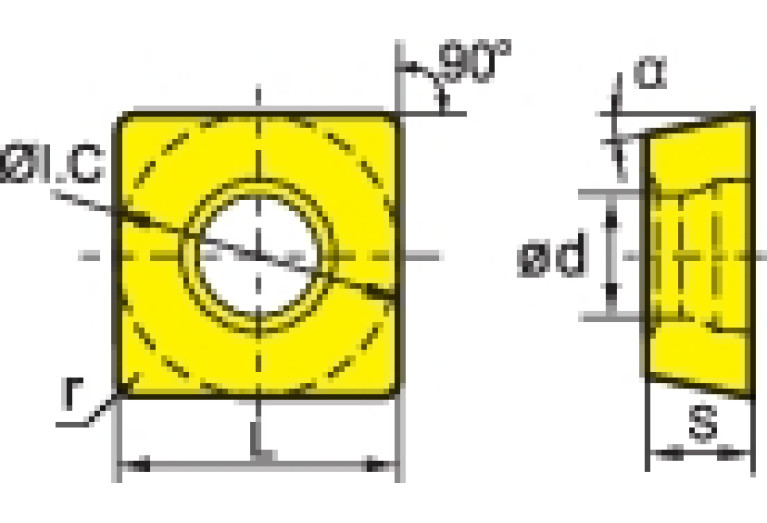

AN Clearance angle major

15 Degree

COATN Coating / Покрытие

MT-TiCN,Al2O3,TiN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

0.0272 kg

DIN

SD0903083N

EPSR Insert included angle

90 Degree

FamilyProducts

SD** milling insert

GRDMFG Grade manufacturers designation

YBM251

GRDPRIO Standard designation of the grade main application

M10-M30

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

SDMT090308 YBM251

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD0903083N

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
