Главная Каталог продукции Toolunited 17 201-02 - Square insert SDHT 1204 AESN BCK15M

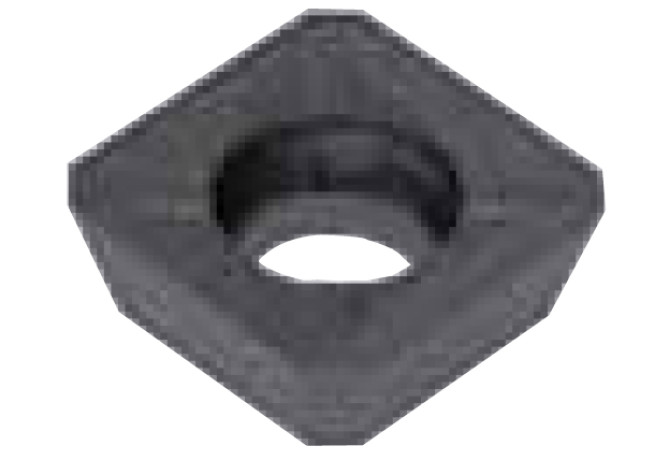

SDHT 1204 AESN BCK15M

Артикул: SDHT 1204 AESN BCK15M

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

HR-CVD

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

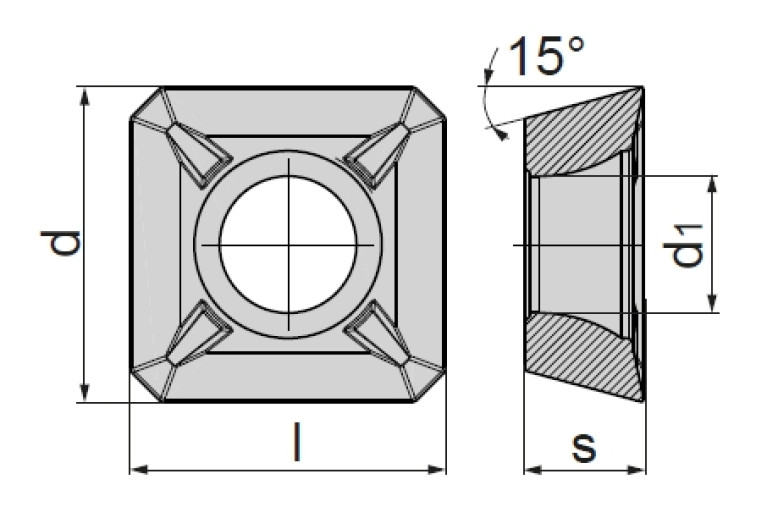

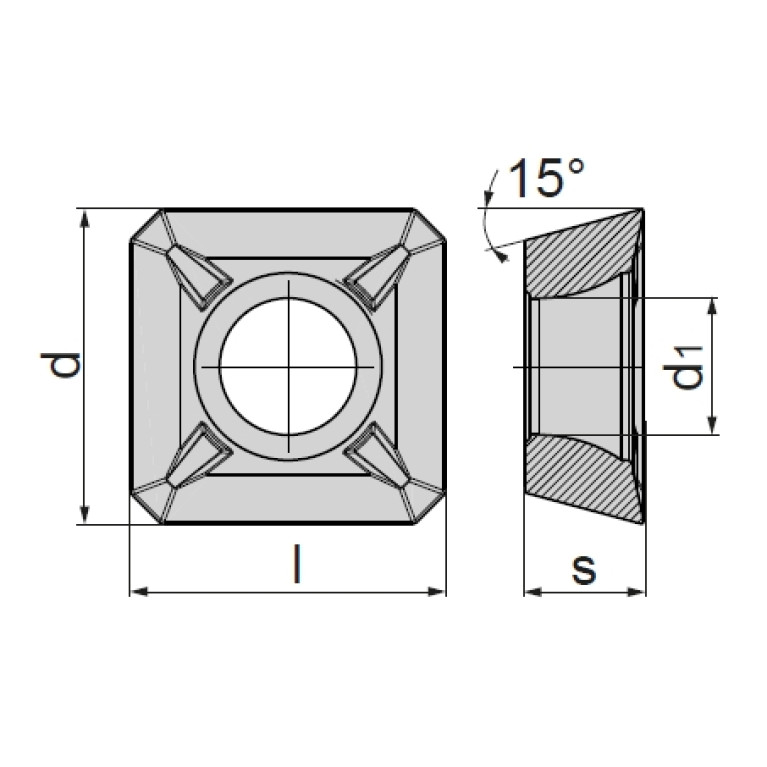

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/30/2016

DIN

SD1204AE3N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

BCK15M

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204AE3N

Name Identifying order number

SDHT 1204 AESN BCK15M

NOI Insert index count

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDHT1204AESN

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling
