Главная Каталог продукции Toolunited 17 201-02 - Square insert SDET1204PDSRGB KCPM40

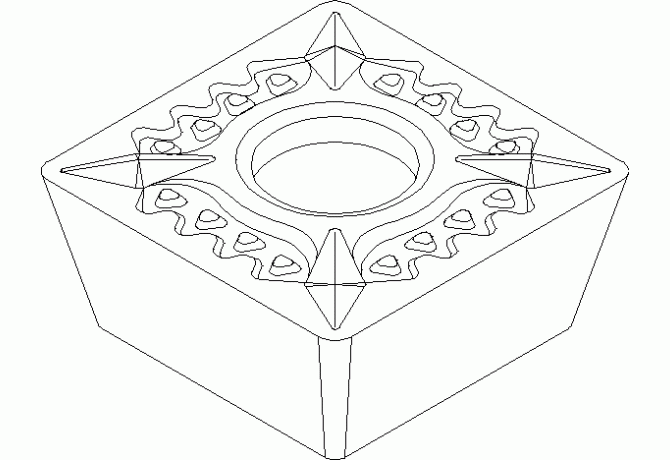

SDET1204PDSRGB KCPM40

Артикул: 5545162

В наличии

В корзину

Описание

Характеристики

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.12 mm

BS Wiper edge length

3.3 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

3.3 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.1 mm

Delivery state valid from

5/20/2015

DIN

KH-WP SDET12

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT SDET L

GRDMFG Grade manufacturers designation

KCPM40

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5545162

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP SDET12

Name Identifying order number

SDET1204PDSRGB KCPM40

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDET1204PDSR

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling,FFO - Die milling,FNU - Groove milling

Главный задний угол (AN) / Clearance angle major (AN)

15 Degree
