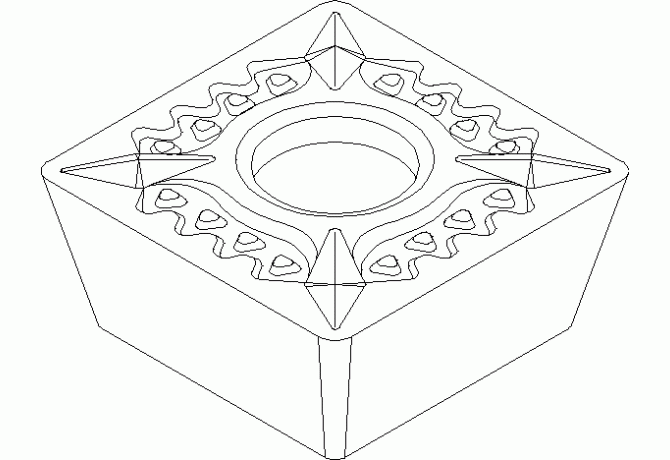

Главная Каталог продукции Toolunited 17 201-02 - Square insert SDET1204PDSLGB2 KCPK30

SDET1204PDSLGB2 KCPK30

Артикул: 2426878

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

3.32 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

GB2

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

5/20/2015

DIN

SD1204PD3L

EPSR Insert included angle

90 Degree

FamilyProducts

KSSM 90° IC 12mm insert

GRDMFG Grade manufacturers designation

KCPK30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

2426878

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204PD3L

Name Identifying order number

SDET1204PDSLGB2 KCPK30

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDET1204PDSL

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FPL - Face milling,FFO - Die milling,FNU - Groove milling
