Главная Каталог продукции Toolunited 17 201-02 - Square insert SCMT380932-RR96 TP200

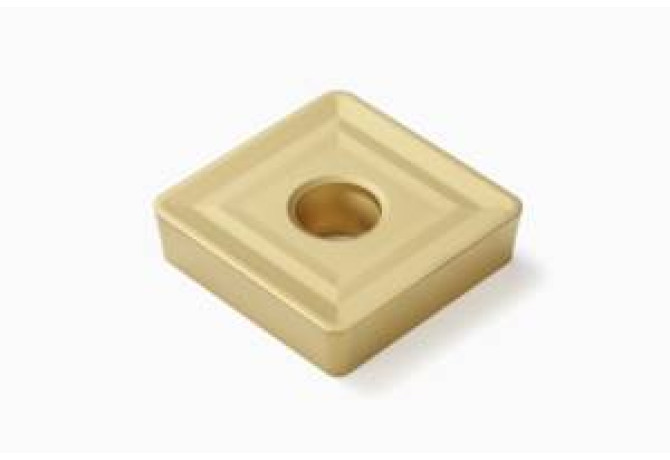

SCMT380932-RR96 TP200

Артикул: 02791927

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RR96

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SC3809323N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT380932-RR96 TP200

GRDMFG Grade manufacturers designation

TP200

IC Inscribed circle diameter

38.1 mm

ID Technical product number

02791927

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC3809323NB$$32

ISYC Subclass

201-02 - Square insert

L Cutting edge length

38.1 mm

LE Cutting edge effective length

34.9 mm

LOC-03 ISO

ISO$SC3809323NB$$32

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC3809323N

MIID Master insert identification

SCMT380932 TP200

Name Identifying order number

SCMT380932-RR96 TP200

NameAnsi Identifying order number inch alternative

SCMT1268-RR96 TP200

NOI Insert index count

RE Corner radius

3.2 mm

S Insert thickness

9.4 mm

S1 Insert thickness total

9.4 mm

STDDES Standard designation

SCMT380932

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.161 kg
