Главная Каталог продукции Toolunited 17 201-02 - Square insert SCMT250924T-F2 TP200

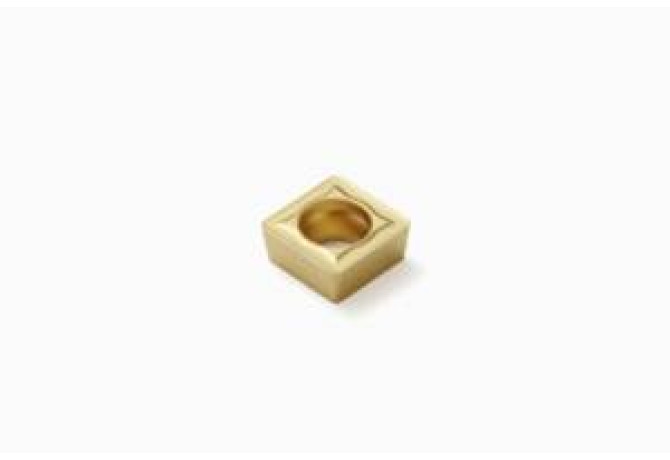

SCMT250924T-F2 TP200

Артикул: 74069613

В наличии

В корзину

Описание

Характеристики

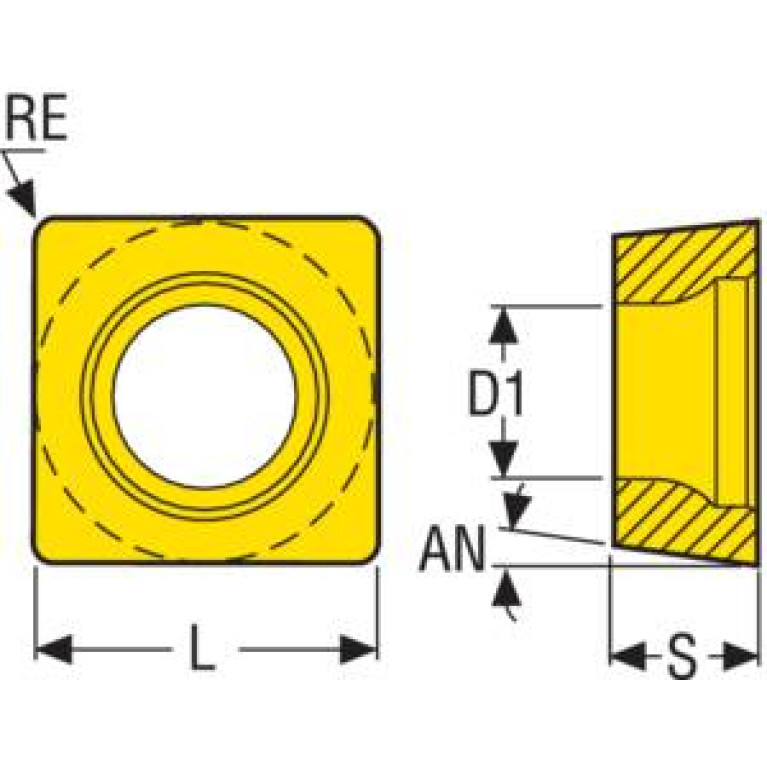

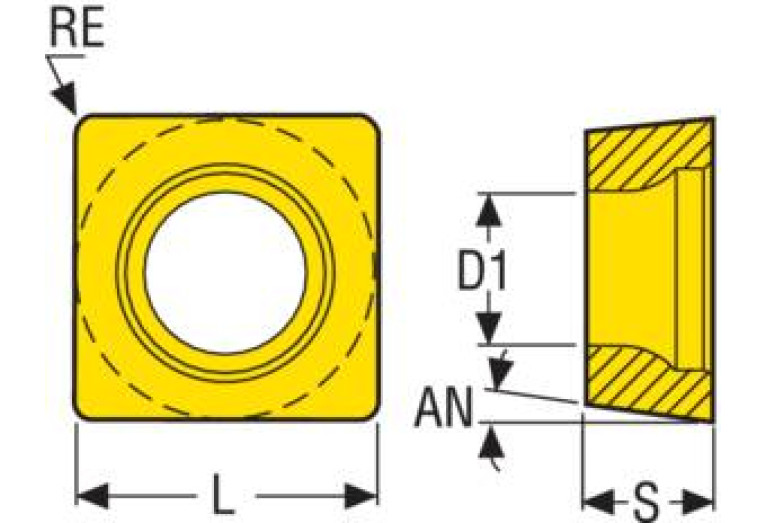

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SC2509243N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT250924T-F2 TP200

GRDMFG Grade manufacturers designation

TP200

IC Inscribed circle diameter

25.4 mm

ID Technical product number

74069613

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC2509243NB$$24

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LE Cutting edge effective length

23 mm

LOC-03 ISO

ISO$SC2509243NB$$24

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC2509243N

MIID Master insert identification

SCMT250924T TP200

Name Identifying order number

SCMT250924T-F2 TP200

NameAnsi Identifying order number inch alternative

SCMT866-F2 TP200

NOI Insert index count

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

SCMT250924T

STDDESAnsi Standard designation ANSI

SCMT866T

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.065 kg
