Главная Каталог продукции Toolunited 17 201-02 - Square insert SCMT120412LF KC850

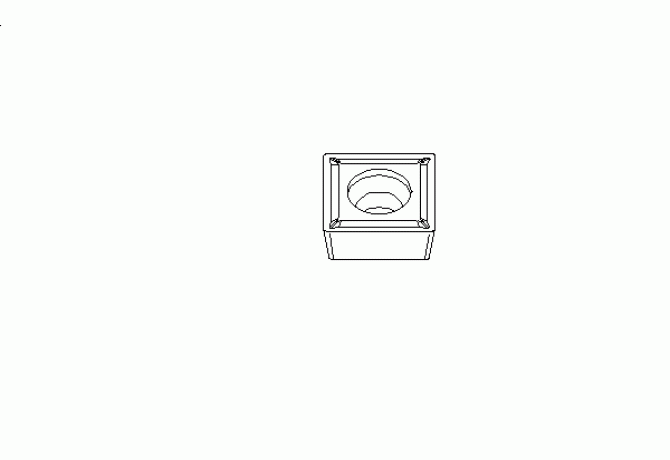

SCMT120412LF KC850

Артикул: 1162423

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

1/4/2011

DIN

SC1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

KC850

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1162423

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204 3N

Name Identifying order number

SCMT120412LF KC850

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120412

STDDESAnsi Standard designation ANSI

SCMT433LF

TCINS Tolerance class insert

Working process

No working processes available
