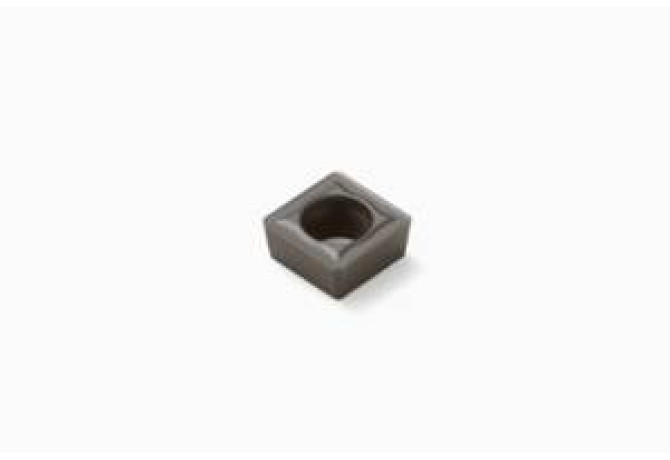

SCMT070308-F2 TP3500

Артикул: 02671594

В наличии

В корзину

Описание

Характеристики

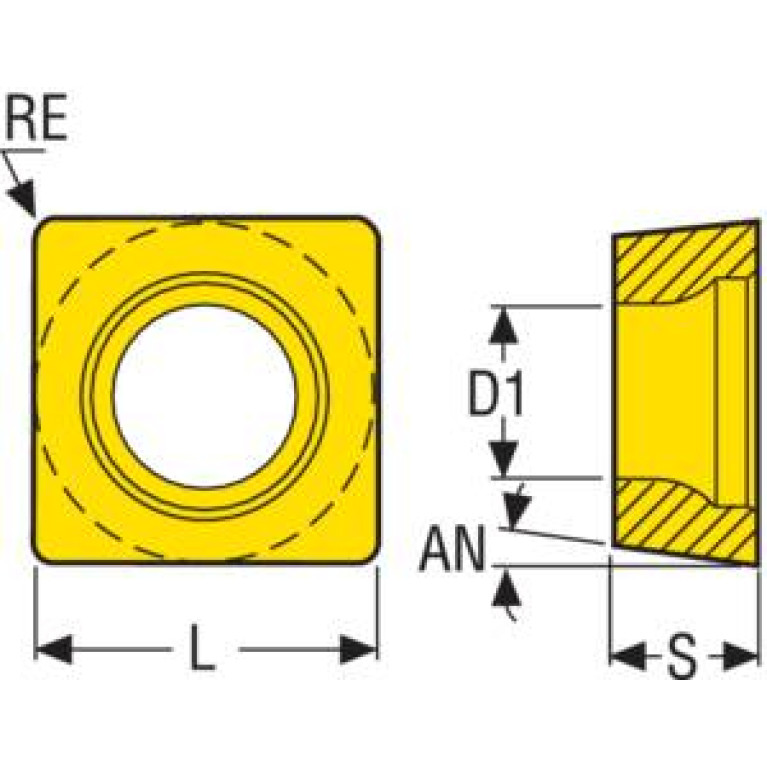

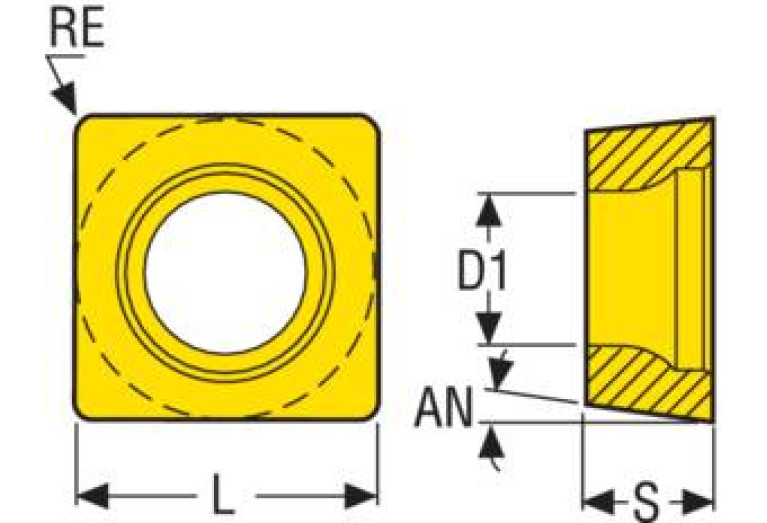

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SC0703083N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT070308-F2 TP3500

GRDMFG Grade manufacturers designation

TP3500

IC Inscribed circle diameter

7.94 mm

ID Technical product number

02671594

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC0703083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7.94 mm

LE Cutting edge effective length

7.1 mm

LOC-03 ISO

ISO$SC0703083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC0703083N

MIID Master insert identification

SCMT070308 TP3500

Name Identifying order number

SCMT070308-F2 TP3500

NameAnsi Identifying order number inch alternative

SCMT2.522-F2 TP3500

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SCMT070308

STDDESAnsi Standard designation ANSI

SCMT2.522

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
