Главная Каталог продукции Toolunited 17 201-02 - Square insert SCGT120408-MM4 WSM01

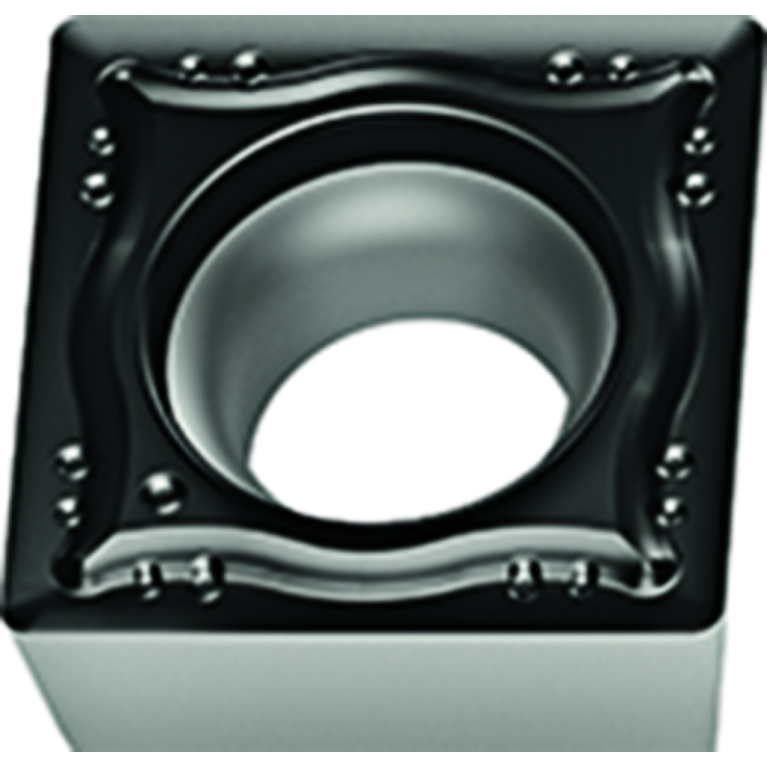

SCGT120408-MM4 WSM01

Артикул: 7021264

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

MM4

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

Positive square SCGT

GRDMFG Grade manufacturers designation

WSM01

IC Inscribed circle diameter

12.7 mm

ID Technical product number

7021264

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC1204083NB$$08

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

ISO$SC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Name Identifying order number

SCGT120408-MM4 WSM01

NameAnsi Identifying order number inch alternative

SCGT432-MM4 WSM01

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.762 mm

S1 Insert thickness total

4.762 mm

STDDES Standard designation

SCGT120408

STDDESAnsi Standard designation ANSI

SCGT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.01 kg
