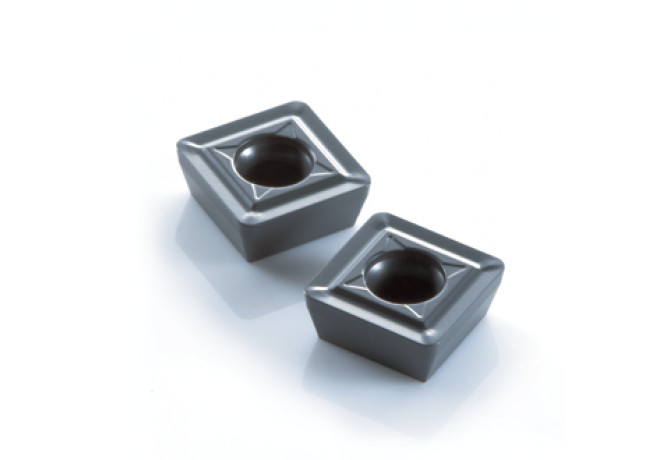

Главная Каталог продукции Toolunited 17 201-02 - Square insert 7818002

7818002

Артикул: 7818002

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

PVD

COMPC Company code

OSG

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.25 mm

DIN

OSG-PHP02

EPSR Insert included angle

90 Degree

FamilyProducts

OSG PHP Inserts XP9040 SCMT052404-DM XP9040

GRDMFG Grade manufacturers designation

XP9040

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

5.4 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

5.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OSG-PHP02

Name Identifying order number

7818002

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.4 mm

STDDES Standard designation

SCMT052404-DM

TCINS Tolerance class insert

Working process

No working processes available
