Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TPUN110304 HX

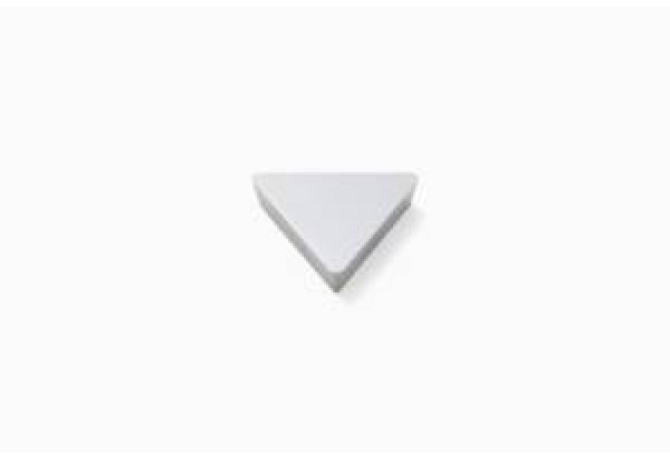

TPUN110304 HX

Артикул: 74010714

В наличии

В корзину

Описание

Характеристики

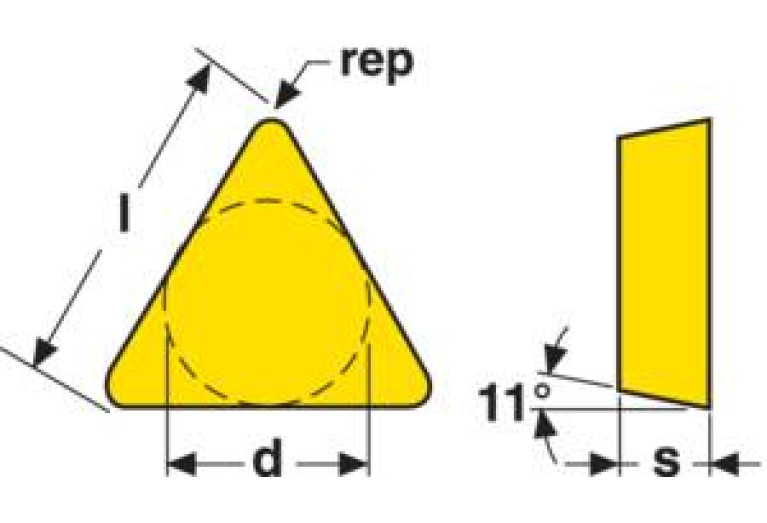

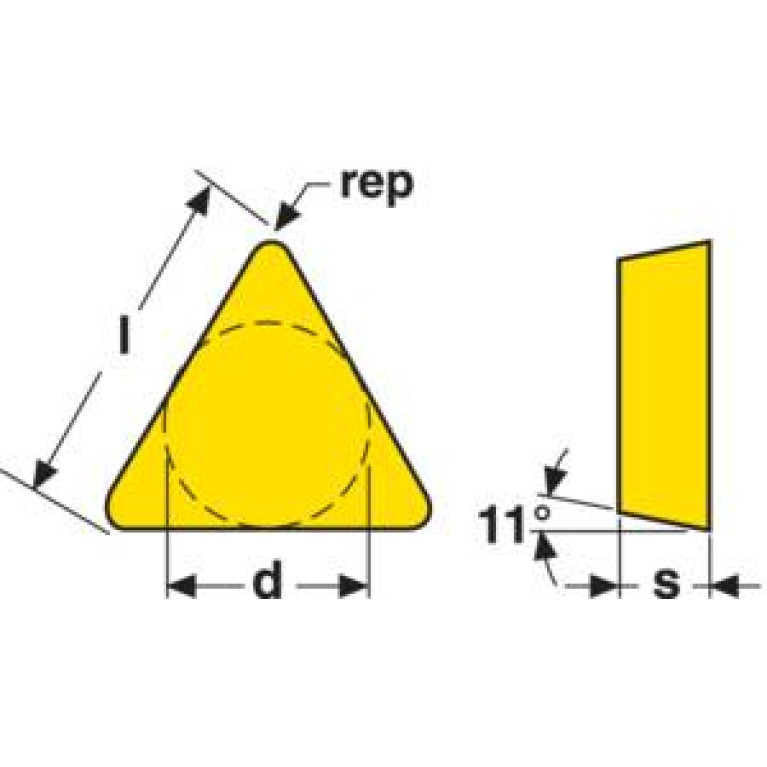

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

TP1103041N

EPSR Insert included angle

60 Degree

FamilyProducts

TPUN110304 HX

GRDMFG Grade manufacturers designation

IC Inscribed circle diameter

6.35 mm

ID Technical product number

74010714

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TP1103041NA$$04

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LE Cutting edge effective length

10.6 mm

LOC-03 ISO

ISO$TP1103041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103041N

MIID Master insert identification

TPUN110304 HX

Name Identifying order number

TPUN110304 HX

NameAnsi Identifying order number inch alternative

TPU221 HX

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPUN110304

STDDESAnsi Standard designation ANSI

TPUN221

TCINS Tolerance class insert

U - Not treated

Working process

No working processes available

WT Weight of item

0.002 kg
