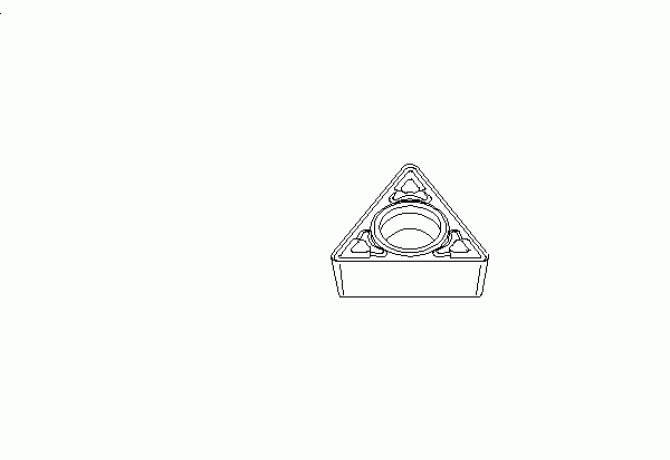

TPMT110208MF KC9315

Артикул: TPMT110208MF KC9315

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

CVD

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state

LH - Stocked

DIN

TP1102 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

KC9315

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1102 3N

Name Identifying order number

TPMT110208MF KC9315

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPMT110208

STDDESAnsi Standard designation ANSI

TPMT2152MF

TCINS Tolerance class insert

Working process

No working processes available
