Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TPMT110204UF KC730

TPMT110204UF KC730

Артикул: TPMT110204UF KC730

В наличии

В корзину

Описание

Характеристики

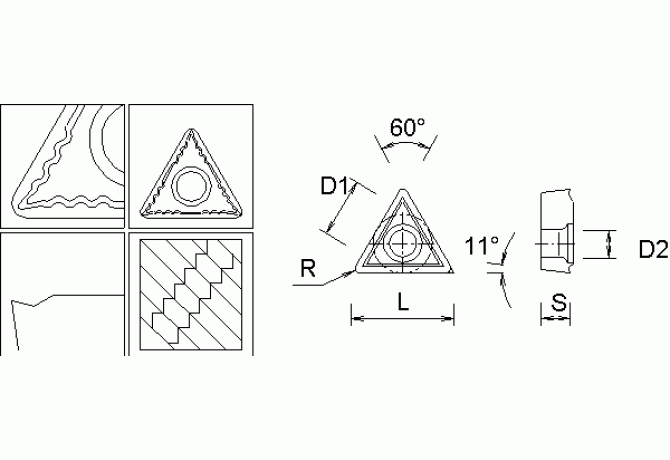

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

1/4/2011

DIN

TP1102 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

KC730

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1102 3N

Name Identifying order number

TPMT110204UF KC730

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPMT110204

STDDESAnsi Standard designation ANSI

TPMT2151

TCINS Tolerance class insert

Working process

No working processes available
