Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TPGN110308E CBN010

TPGN110308E CBN010

Артикул: 02866889

В наличии

В корзину

Описание

Характеристики

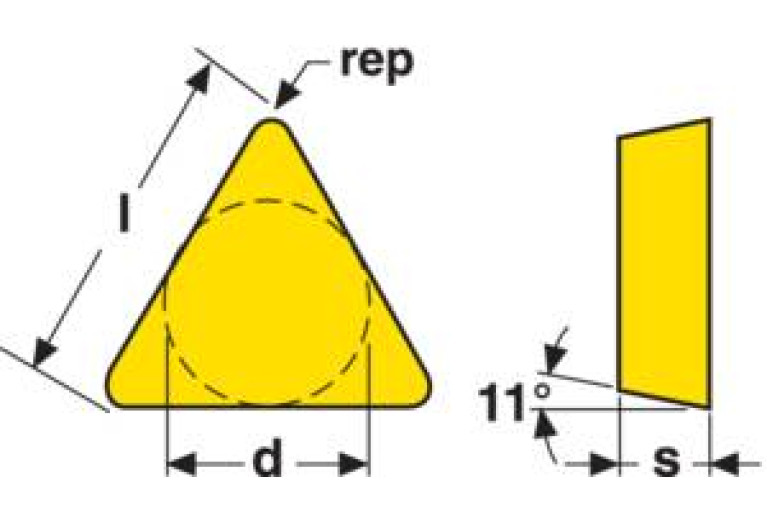

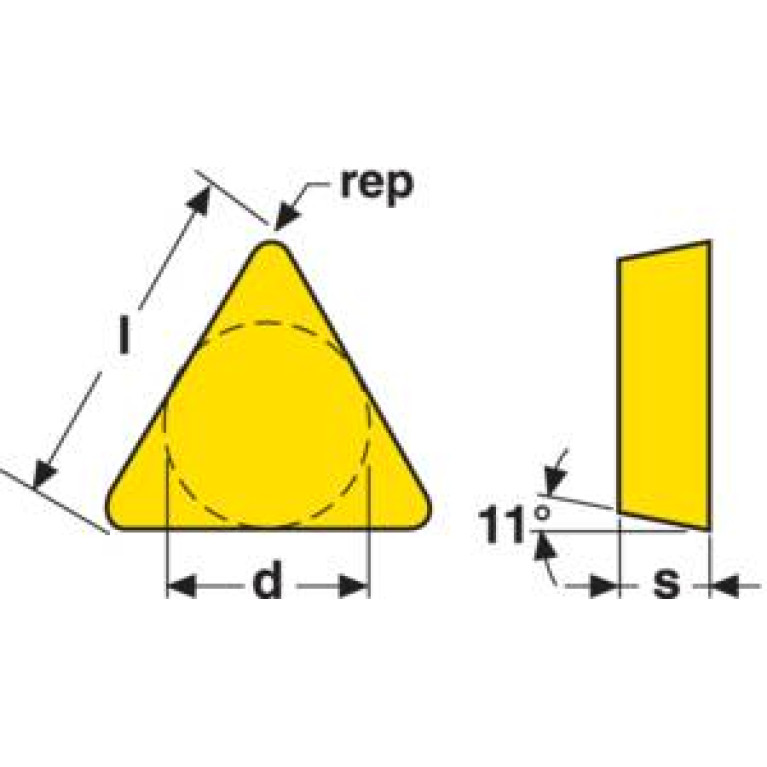

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

TP1103081N

EPSR Insert included angle

60 Degree

FamilyProducts

TPGN110308E CBN010

GRDMFG Grade manufacturers designation

CBN010

IC Inscribed circle diameter

6.35 mm

ID Technical product number

02866889

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TN1103081NA$$08

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LE Cutting edge effective length

9 mm

LOC-03 ISO

ISO$TN1103081NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103081N

MIID Master insert identification

TPGN110308E CBN010

Name Identifying order number

TPGN110308E CBN010

NameAnsi Identifying order number inch alternative

TPGN222E CBN010

NOI Insert index count

RE Corner radius

0.794 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGN110308E

STDDESAnsi Standard designation ANSI

TPGN222E

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.1 kg
