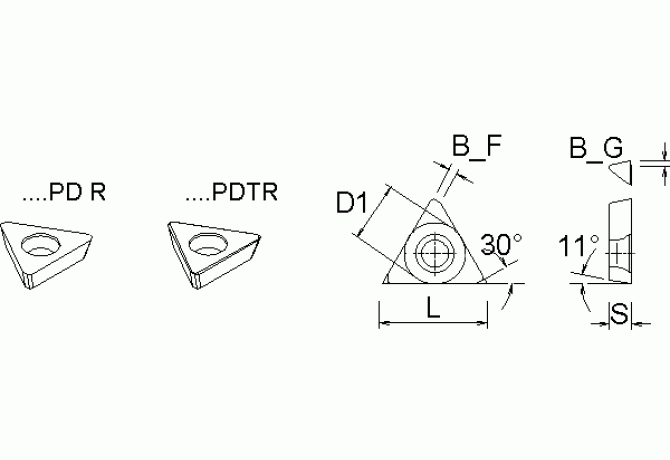

TPCW16T3PDR KC730

Артикул: 1181162

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1.3 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state

LH - Stocked

DIN

KH-WP TPCW16T3

EPSR Insert included angle

60 Degree

FamilyProducts

ISO INSERT MILLING

GRDMFG Grade manufacturers designation

KC730

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1181162

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP TPCW16T3

Name Identifying order number

TPCW16T3PDR KC730

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TPCW16T3PDR

TCINS Tolerance class insert

Working process

No working processes available
