Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TOMT100404PDER-MJ AH120

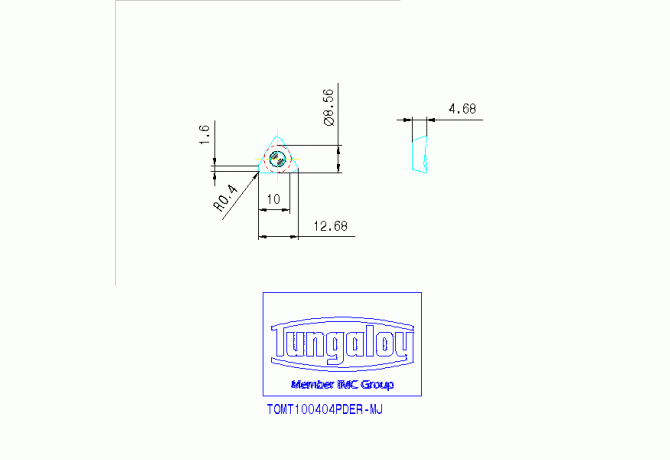

TOMT100404PDER-MJ AH120

Артикул: 6999151

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.5 mm

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiAlN-PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

9/20/2016

DIN

TO1004PD3R

EPSR Insert included angle

60 Degree

FamilyProducts

High performance insert, MJ chipbreaker

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRD3RD Standard designation of the grade 3rd application

HC-K25

GRDMFG Grade manufacturers designation

AH120

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

8.6 mm

ID Technical product number

6999151

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

10.5 mm

LE Cutting edge effective length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TO1004PD3R

Name Identifying order number

TOMT100404PDER-MJ AH120

RE Corner radius

0.4 mm

S Insert thickness

4.7 mm

S1 Insert thickness total

4.7 mm

STDDES Standard designation

TOMT100404PDER-MJ

TCINS Tolerance class insert

Working process

F - Milling
