TNMG160404-EF YBG205

Артикул: TNMG160404-EF YBG205

В наличии

В корзину

Описание

Характеристики

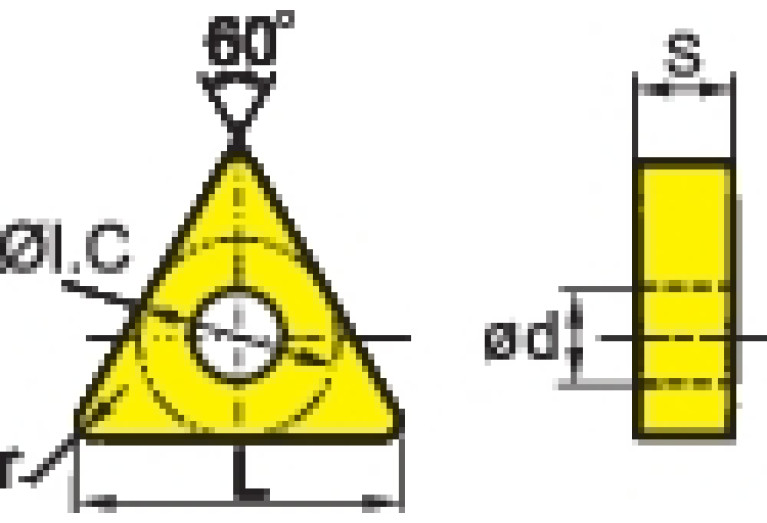

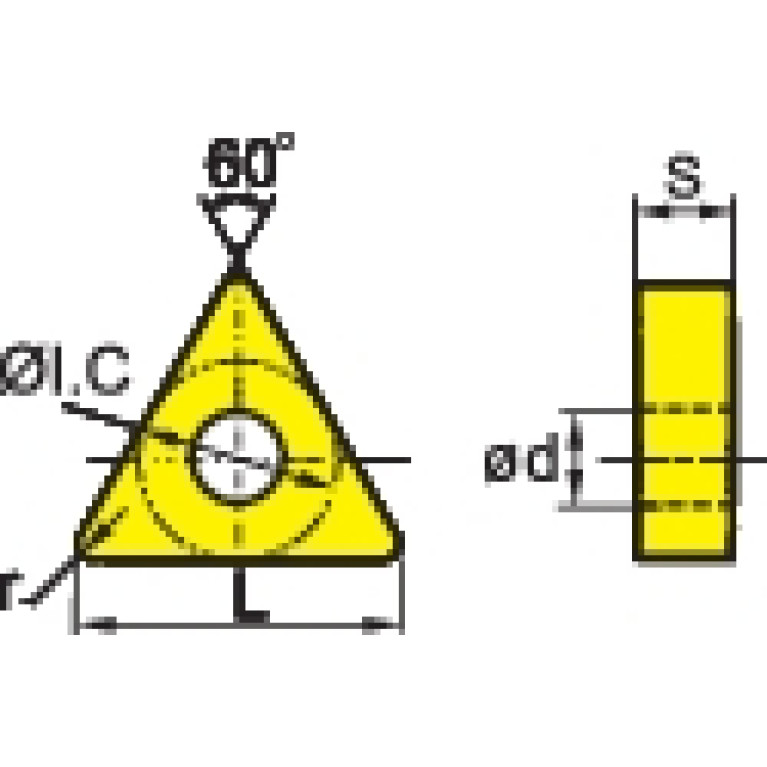

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

0.0654 kg

DIN

TN1604042N

EPSR Insert included angle

60 Degree

FamilyProducts

TN** negative insert

GRD2ND Standard designation of the grade 2nd application

S05-S30

GRDMFG Grade manufacturers designation

YBG205

GRDPRIO Standard designation of the grade main application

M20-M40

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

TNMG160404-EF YBG205

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042N

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
