Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TDAB06T002 CP250

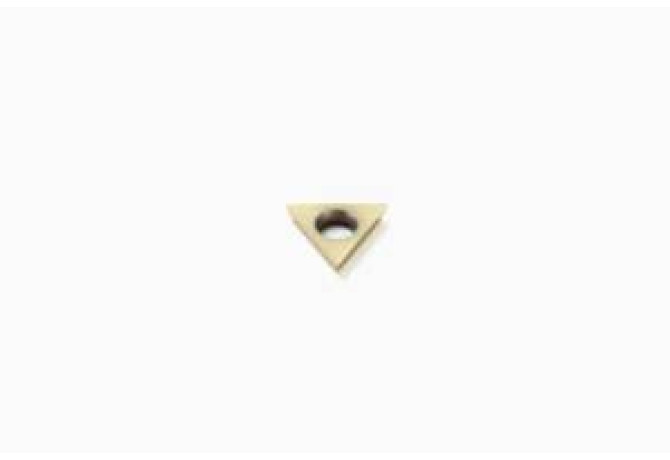

TDAB06T002 CP250

Артикул: 00026888

В наличии

В корзину

Описание

Характеристики

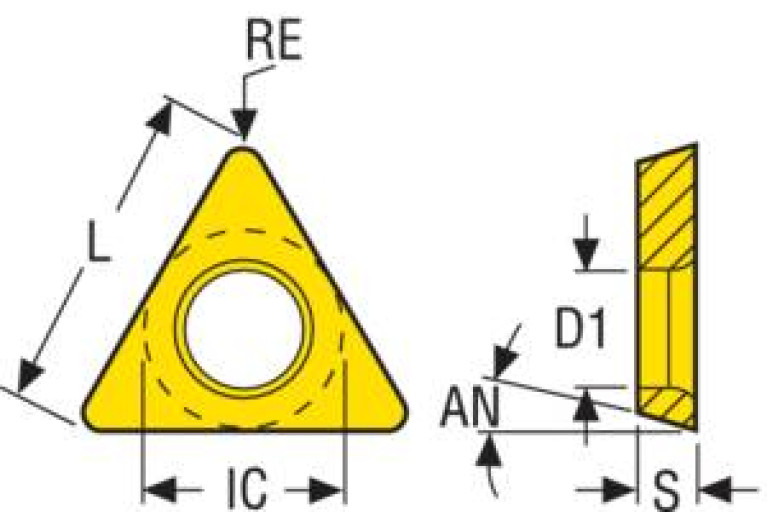

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

TD06T0024N

EPSR Insert included angle

60 Degree

FamilyProducts

TDAB06T002 CP250

GRDMFG Grade manufacturers designation

CP250

IC Inscribed circle diameter

4.064 mm

ID Technical product number

00026888

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TD06T0024NA$$02

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

6.8 mm

LE Cutting edge effective length

6.6 mm

LOC-03 ISO

ISO$TD06T0024NA$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TD06T0024N

MIID Master insert identification

TDAB06T002 CP250

Name Identifying order number

TDAB06T002 CP250

NameAnsi Identifying order number inch alternative

TDAB1.21.50.5 CP250

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

1.194 mm

S1 Insert thickness total

1.194 mm

STDDES Standard designation

TDAB06T002

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0 kg
