Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TCMT110204 CM2

TCMT110204 CM2

Артикул: 1198303

В наличии

В корзину

Описание

Характеристики

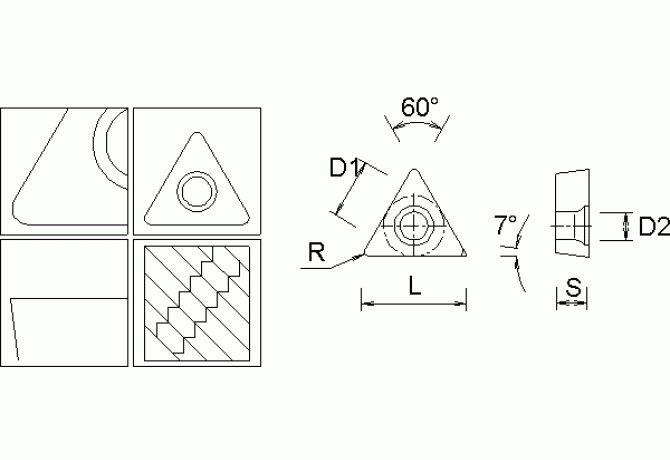

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state

LH - Stocked

DIN

TC1102 3N

EPSR Insert included angle

60 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

CM2

IC Inscribed circle diameter

6.35 mm

ID Technical product number

1198303

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102 3N

Name Identifying order number

TCMT110204 CM2

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCMT110204

STDDESAnsi Standard designation ANSI

TCMT21.51

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
