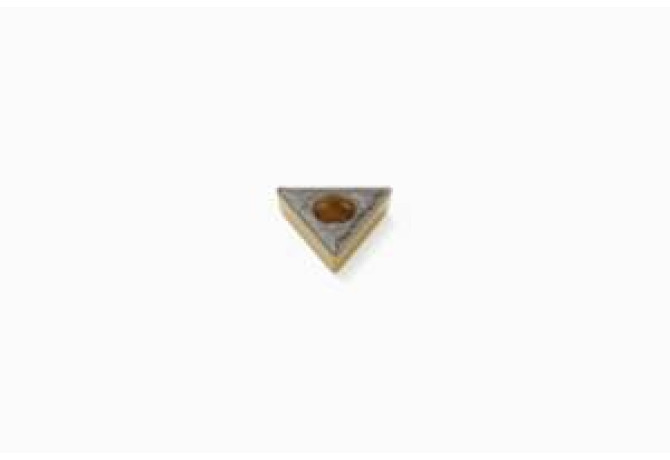

Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TCMT06T104-P1 T15D

TCMT06T104-P1 T15D

Артикул: 00040350

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.2 mm

Delivery state valid from

12/1/2023

DIN

SO-TC06T1 3N

EPSR Insert included angle

60 Degree

FamilyProducts

TCMT06T104-P1 T15D

GRDMFG Grade manufacturers designation

T15D

IC Inscribed circle diameter

3.97 mm

ID Technical product number

00040350

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

6.876 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-TC06T1 3N

MIID Master insert identification

TCMT06T104 T15D

Name Identifying order number

TCMT06T104-P1 T15D

RE Corner radius

0.4 mm

S Insert thickness

1.98 mm

S1 Insert thickness total

1.98 mm

STDDES Standard designation

TCMT06T104

STDDESAnsi Standard designation ANSI

TCMT1.21.21

TCINS Tolerance class insert

Working process

No working processes available
