Главная Каталог продукции Toolunited 17 201-01 - Triangle insert TCHT110208E02L-2L-HC709

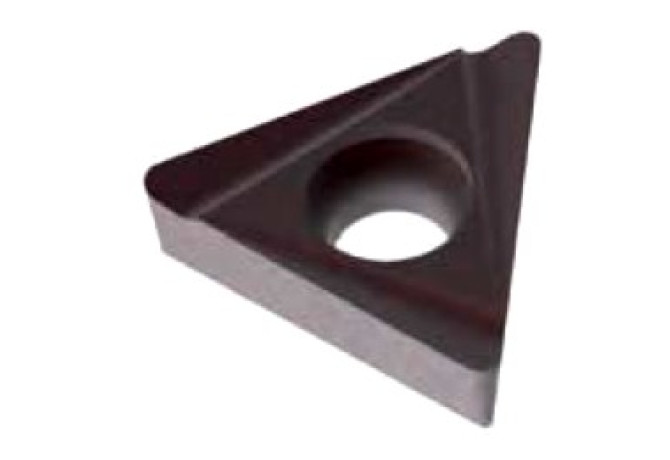

TCHT110208E02L-2L-HC709

Артикул: 30680014

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MP - Mapal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/30/2017

DIN

TC1102 3L

EPSR Insert included angle

60 Degree

FamilyProducts

Radial indexable insert TCHT, 3 cutting edges

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HC709

IC Inscribed circle diameter

6.35 mm

ID Technical product number

30680014

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102 3L

Name Identifying order number

TCHT110208E02L-2L-HC709

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCHT110208L

STDDESAnsi Standard designation ANSI

TCHT21.52L

TCINS Tolerance class insert

Working process

B - Drilling,BAB - Open by boring,BVB - Drilling,FEC - Square shoulder milling,FPL - Face milling
