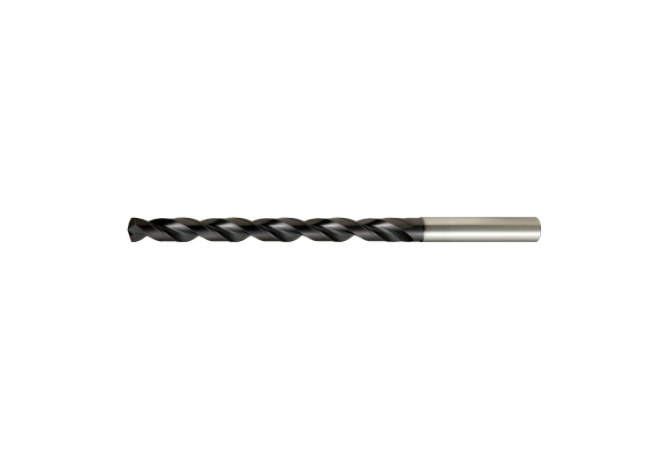

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill VAPDJD0900

VAPDJD0900

Артикул: 10571705

В наличии

В корзину

Описание

Характеристики

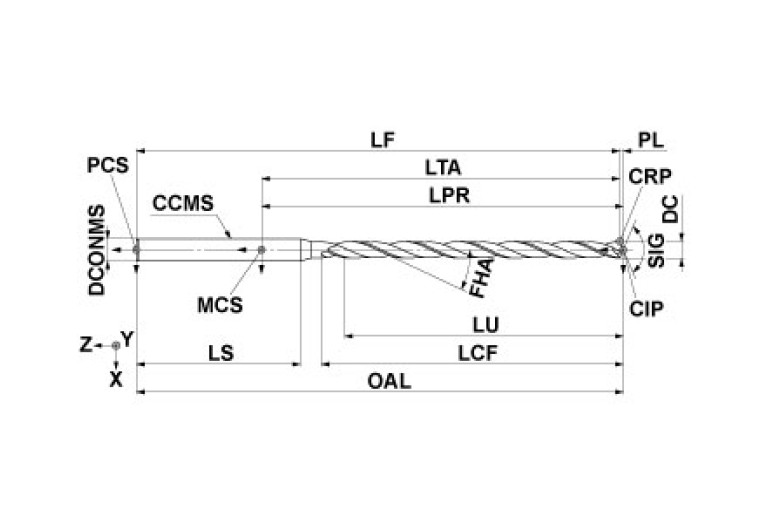

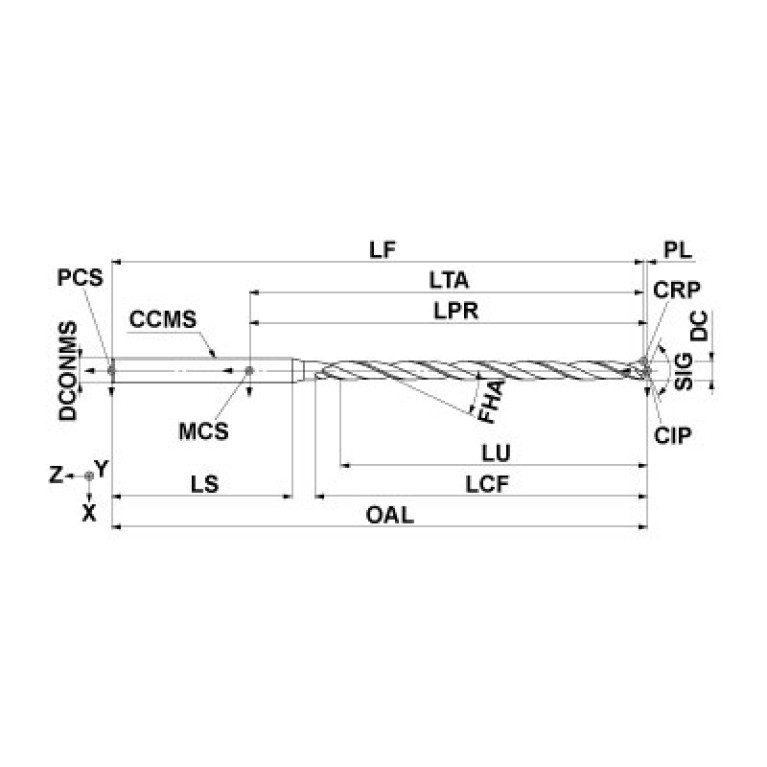

BMC Body material code

L - Light alloy

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01000105

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10571705

Interface codes

J6 / J61

ISO

ZYL01G1000h$07

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

115.9 mm

LF Functional length

169 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$07

LOC-03 ISO

ZYL01G1000h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LU Usable length

97.9 mm

Name Identifying order number

VAPDJD0900

NOF Flute count

OAL Overall length

170.9 mm

PL Point length

1.9 mm

SIG Point angle 1st step

135 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
