Главная Каталог продукции Toolunited 17 302-01 - Twist Drill SD205A-7.963-40-8R1-C1

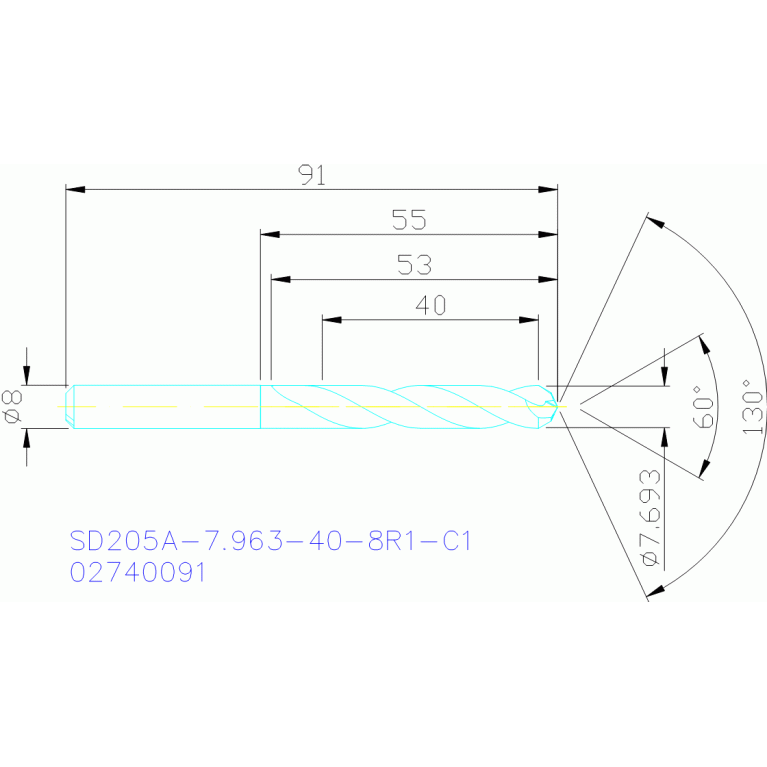

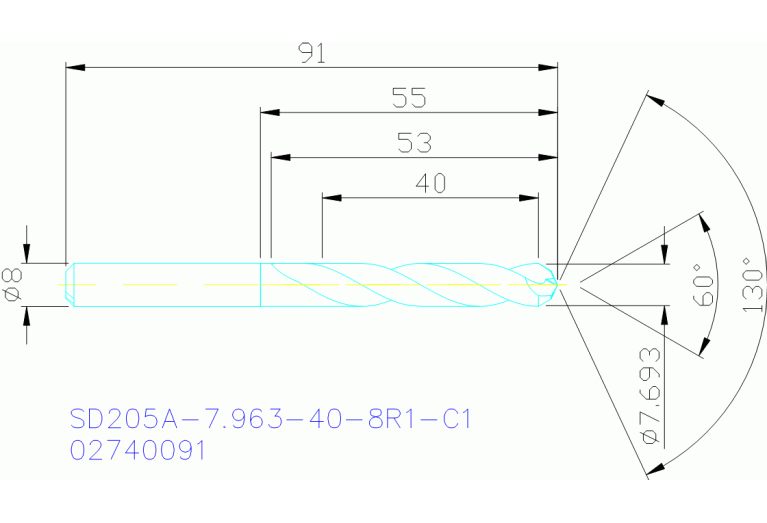

SD205A-7.963-40-8R1-C1

Артикул: 02740091

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COMPC Company code

SO - SECO Tools

DC Cutting diameter minimum

7.963 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

ZYL00800105

FamilyProducts

SD205A-7.963-40-8R1-C1

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

02740091

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

53 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

55 mm

LS Shank length

36 mm

LU Usable length

40 mm

Name Identifying order number

SD205A-7.963-40-8R1-C1

NOF Flute count

OAL Overall length

91 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.1 kg
