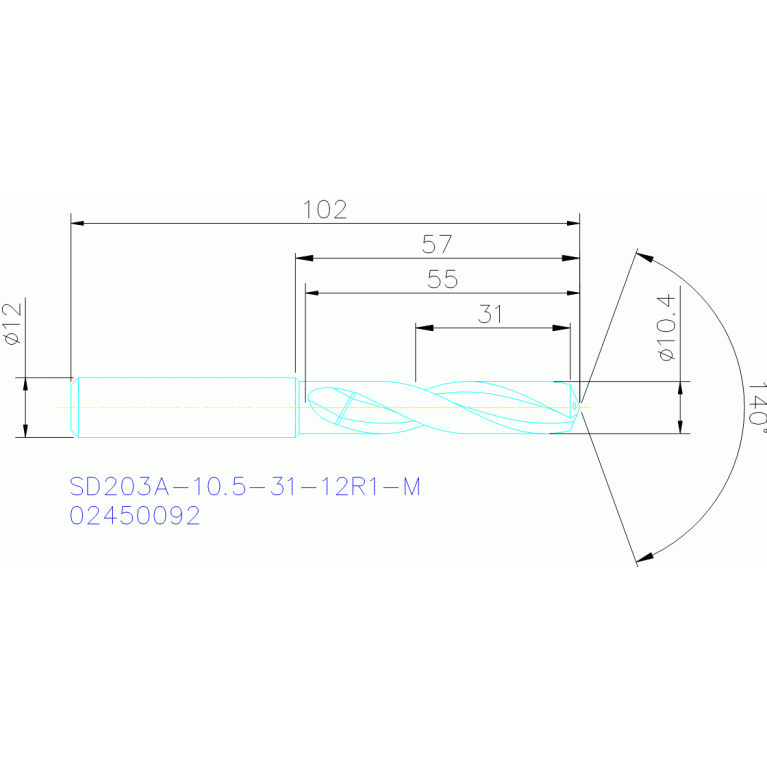

SD203A-10.5-31-12R1-M

Артикул: 02450092

В наличии

В корзину

Описание

Характеристики

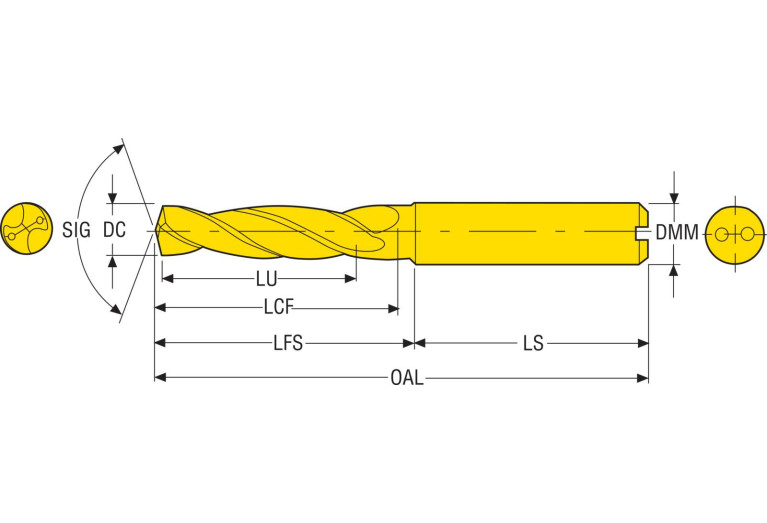

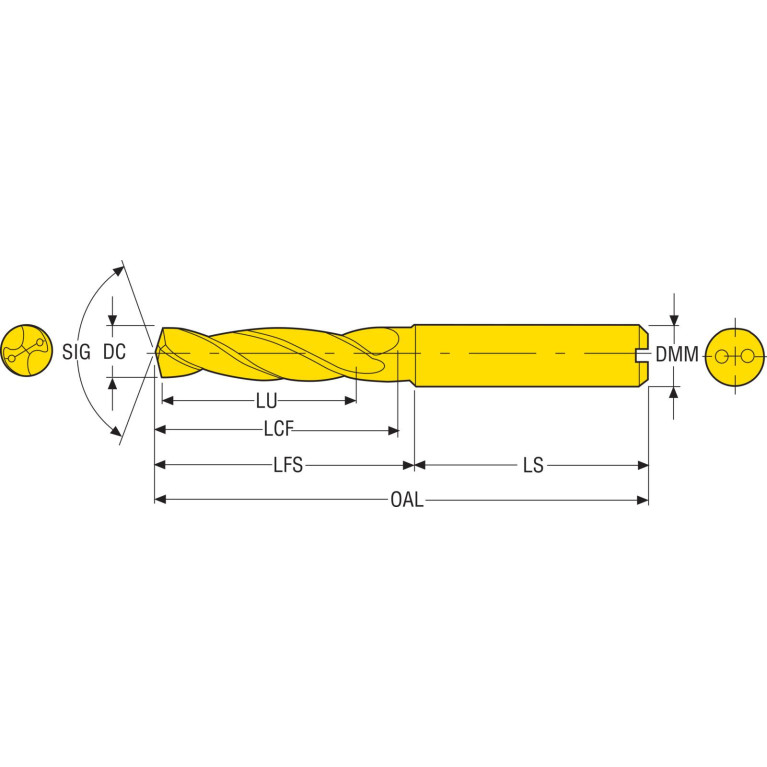

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

10.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01200115

FamilyProducts

SD203A-10.5-31-12R1-M

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

02450092

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

55 mm

LF Functional length

100.09 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LS Shank length

45 mm

LU Usable length

31 mm

Name Identifying order number

SD203A-10.5-31-12R1-M

NOF Flute count

OAL Overall length

102 mm

PL Point length

1.91 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.111 kg
