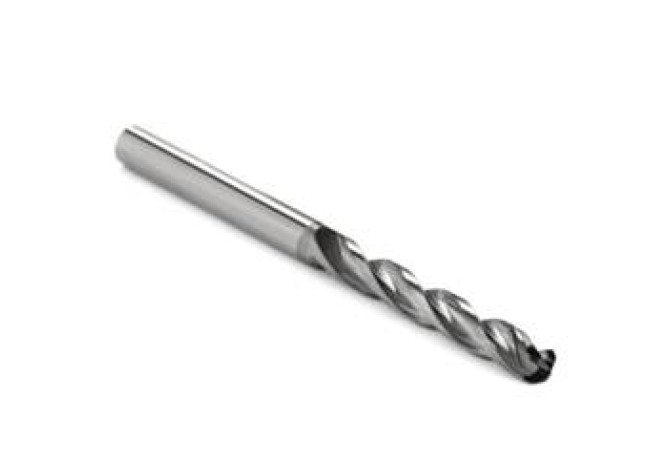

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill SD203-4.83-20-6R1-CX1

SD203-4.83-20-6R1-CX1

Артикул: 02827925

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.83 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00600105

FamilyProducts

SD203-4.83-20-6R1-CX1

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

02827925

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

28 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LS Shank length

36 mm

LU Usable length

20 mm

Name Identifying order number

SD203-4.83-20-6R1-CX1

NOF Flute count

OAL Overall length

66 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling

WT Weight of item

0.018 kg
