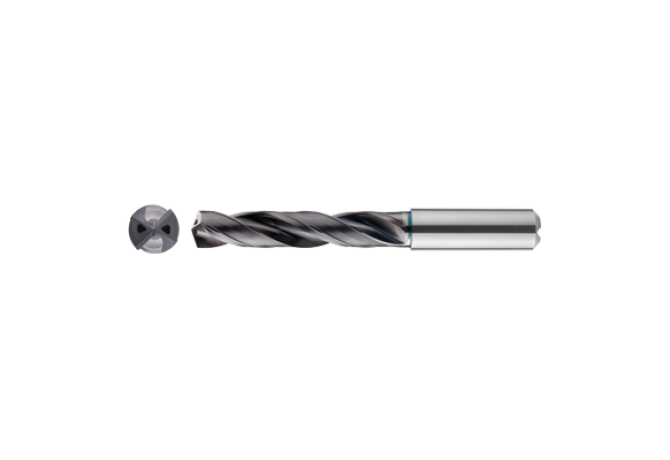

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill MPS1-0360-L35C DP1021

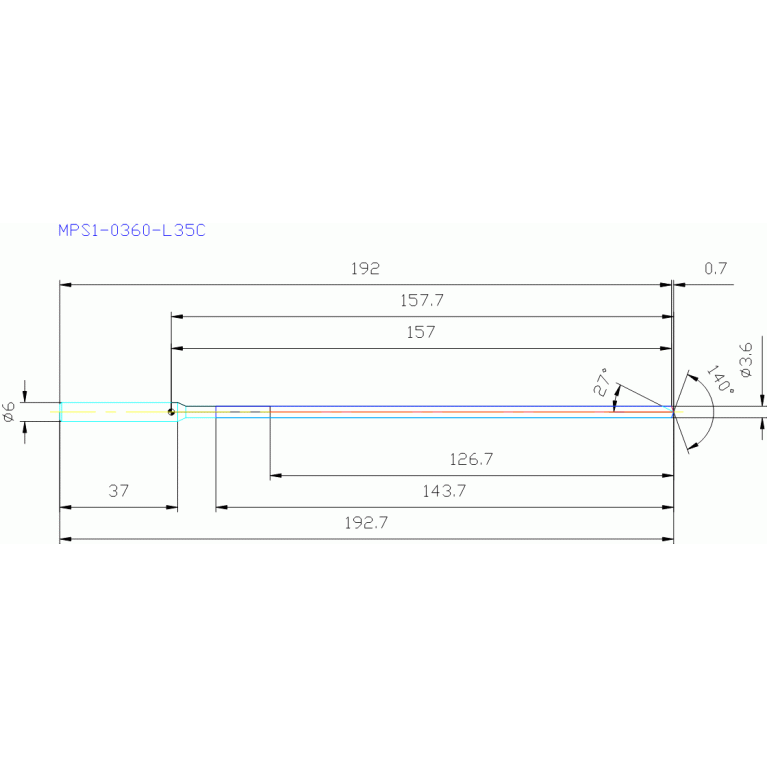

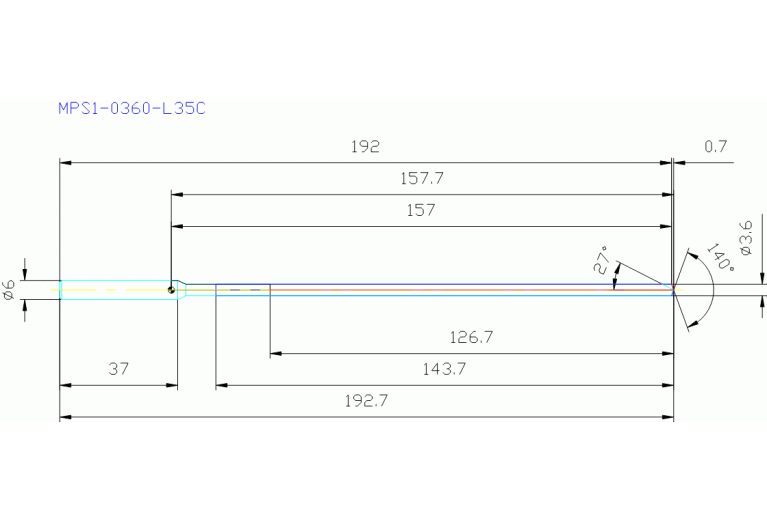

MPS1-0360-L35C DP1021

Артикул: 20569891

В наличии

В корзину

Описание

Характеристики

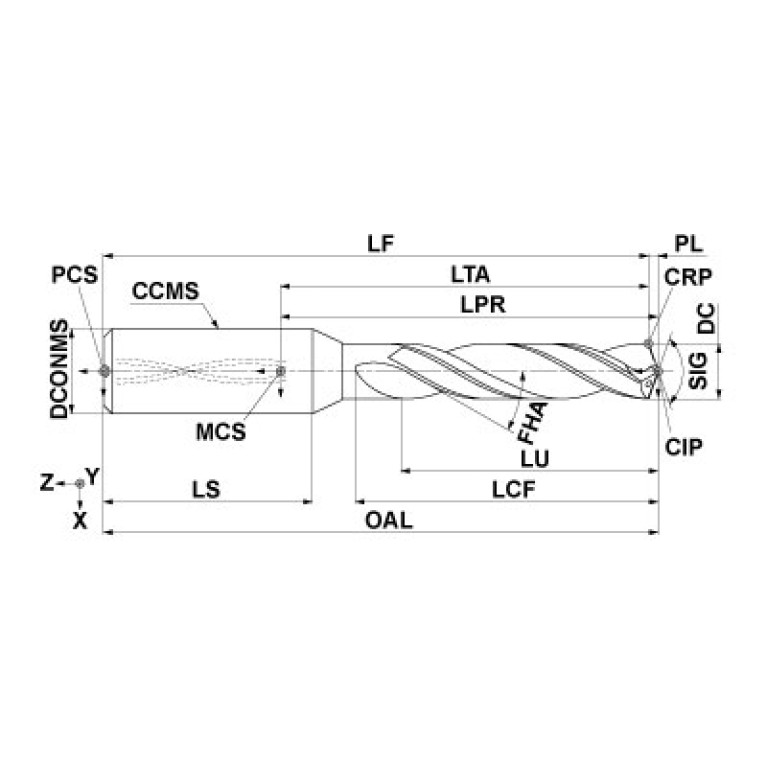

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

3.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00600115

FamilyProducts

Double margin type

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1021

HAND Cutting direction

R - Right

ID Technical product number

20569891

Interface codes

J6 / J61

ISO

ZYL01F6000$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

143.7 mm

LF Functional length

192 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

ZYL01F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

157.7 mm

LS Shank length

37 mm

LU Usable length

126.7 mm

Name Identifying order number

MPS1-0360-L35C DP1021

NOF Flute count

OAL Overall length

192.7 mm

PL Point length

0.7 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
