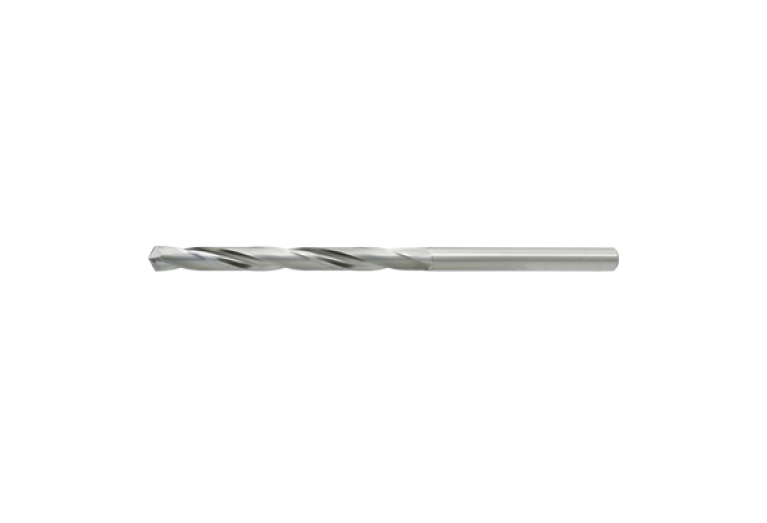

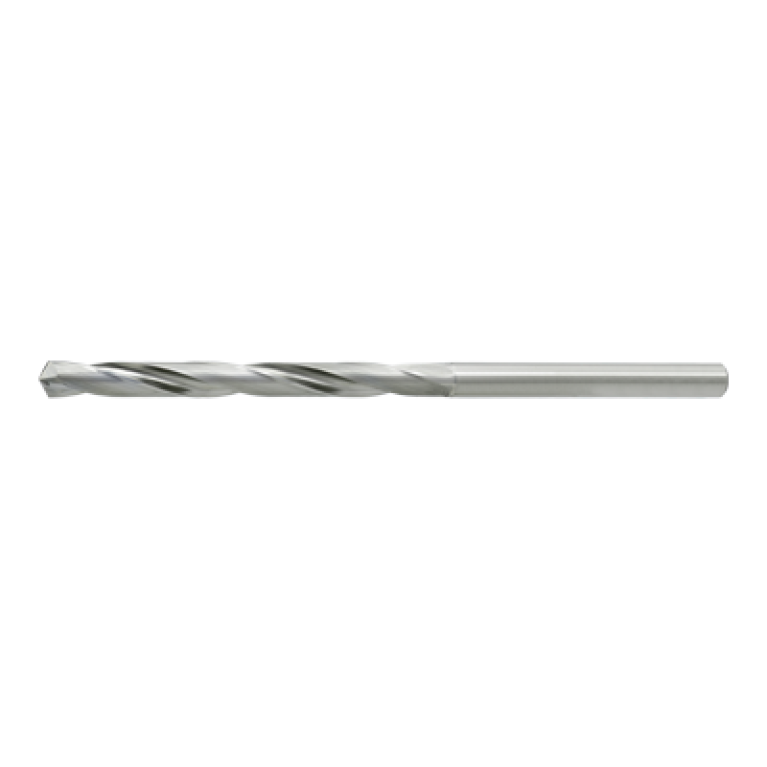

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill MCAH0638X05S070 DT2030

MCAH0638X05S070 DT2030

Артикул: 10579046

В наличии

В корзину

Описание

Характеристики

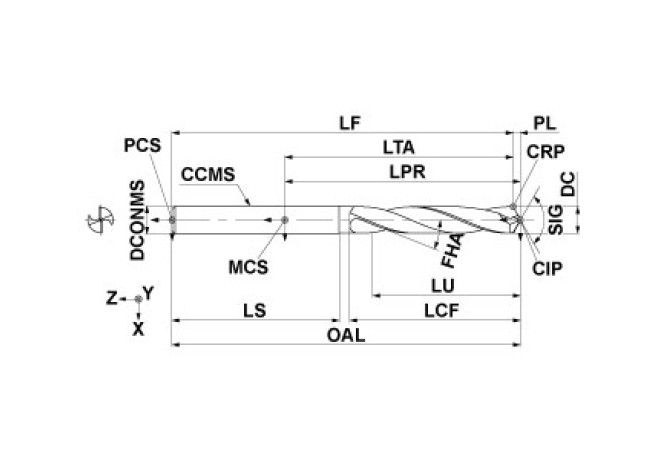

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

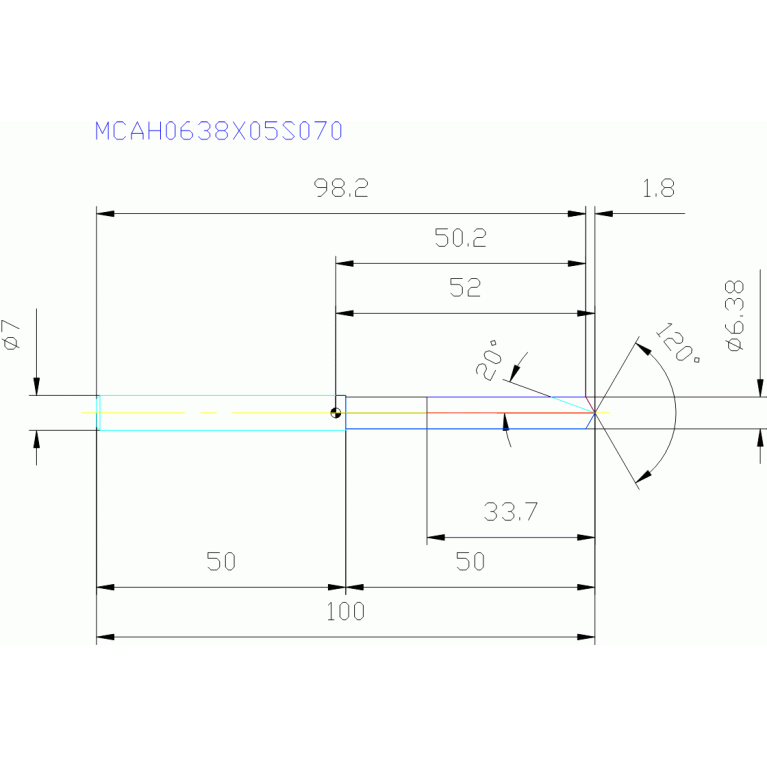

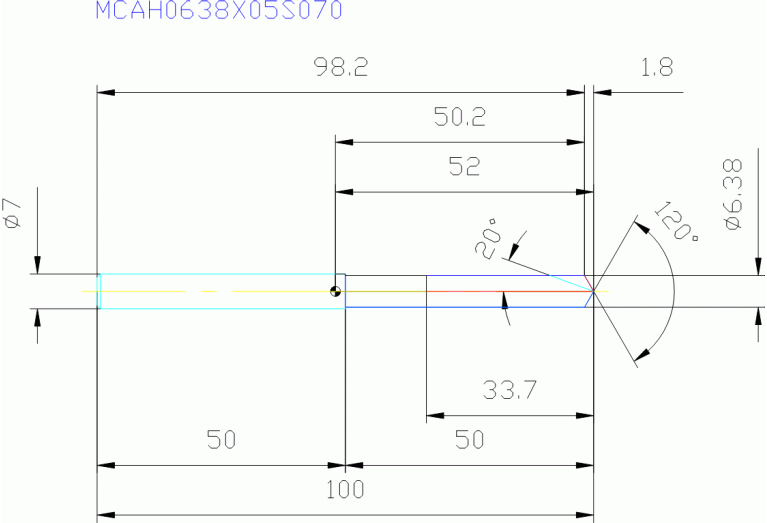

DC Cutting diameter minimum

6.38 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00700105

FamilyProducts

DRILL FOR COMPOSITES

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DT2030

HAND Cutting direction

R - Right

ID Technical product number

10579046

Interface codes

J6 / J61

ISO

ZYL01F7000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

50 mm

LF Functional length

98.2 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F7000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00700105

LPR Protruding length

52 mm

LS Shank length

50 mm

LU Usable length

33.7 mm

Name Identifying order number

MCAH0638X05S070 DT2030

NOF Flute count

OAL Overall length

100 mm

PL Point length

1.8 mm

SIG Point angle 1st step

120 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
