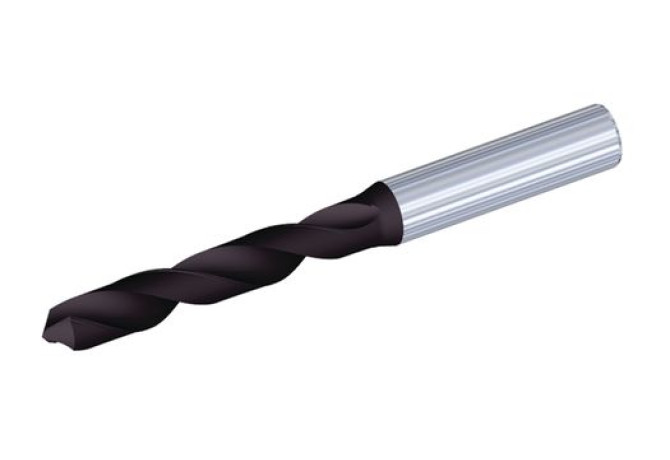

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill K531A03125SPF KDF400

K531A03125SPF KDF400

Артикул: 3367366

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

CVD

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

7.9375 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state

11/19/2015

DIN

ZYL03130125

FamilyProducts

SPF Drill Composite (CFRP) Materials K531, Inch

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KDF400

HAND Cutting direction

R - Right

ID Technical product number

3367366

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0313

LOC-03 DCONMS Diameter

7.9375 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03130125

Materials

Name Identifying order number

K531A03125SPF KDF400

NOF Flute count

PL Point length

3.6068 mm

SIG Point angle 1st step

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
