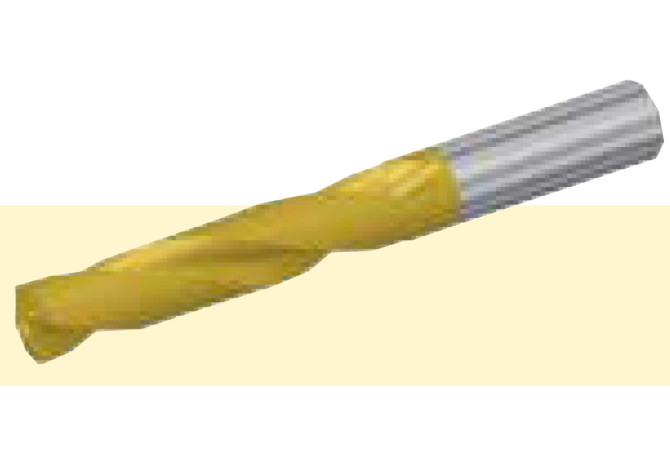

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill K210A07500HP KCM15

K210A07500HP KCM15

Артикул: 4096650

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/5/2017

DIN

ZYL07500135

FamilyProducts

Vollhartmetallbohrer 3xD mit Innenkühlung, zöllig

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KCM15

HAND Cutting direction

R - Right

ID Technical product number

4096650

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

75.946 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07500135

LPR Protruding length

78.486 mm

LS Shank length

50.546 mm

LU Usable length

55.499 mm

Name Identifying order number

K210A07500HP KCM15

NOF Flute count

OAL Overall length

129.032 mm

SIG Point angle 1st step

135 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
