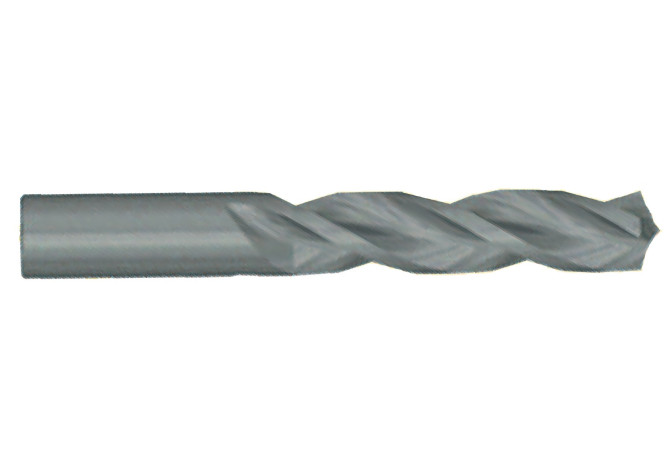

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill K105A06591 KC7210

K105A06591 KC7210

Артикул: K105A06591 KC7210

В наличии

В корзину

Описание

Характеристики

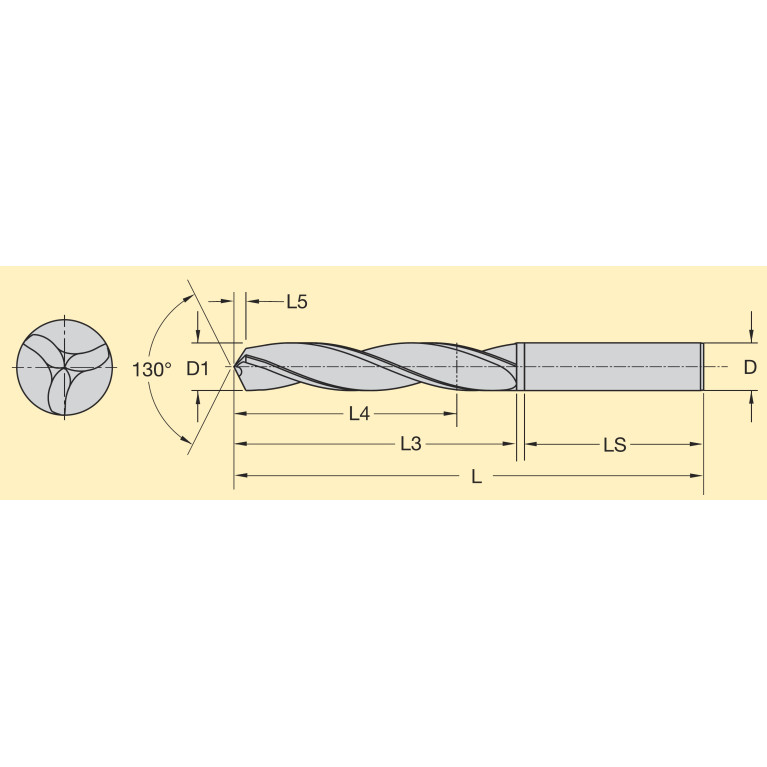

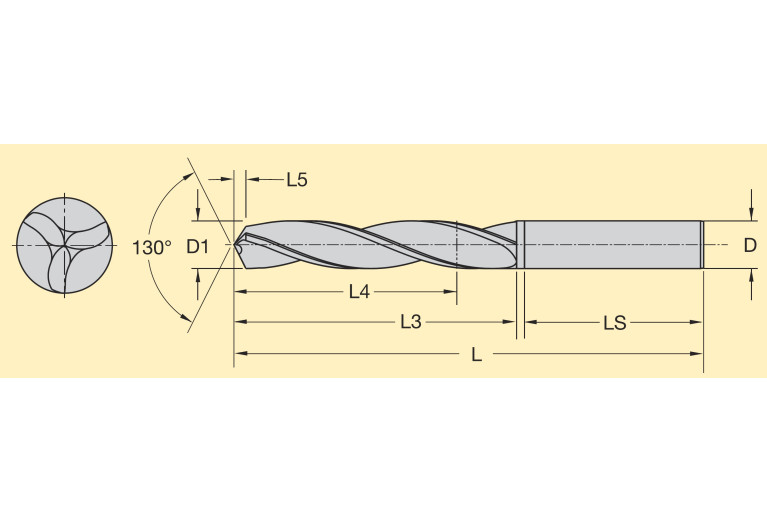

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

16.7411 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/5/2017

DIN

ZYL06880125

FamilyProducts

zölliger Vollhartmetallbohrer Typ K105

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC7210

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

91.948 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0688

LOC-03 DCONMS Diameter

17.4625 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06880125

LPR Protruding length

94.488 mm

LS Shank length

48.514 mm

LU Usable length

72.9996 mm

Name Identifying order number

K105A06591 KC7210

NOF Flute count

OAL Overall length

143.002 mm

SIG Point angle 1st step

130 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
