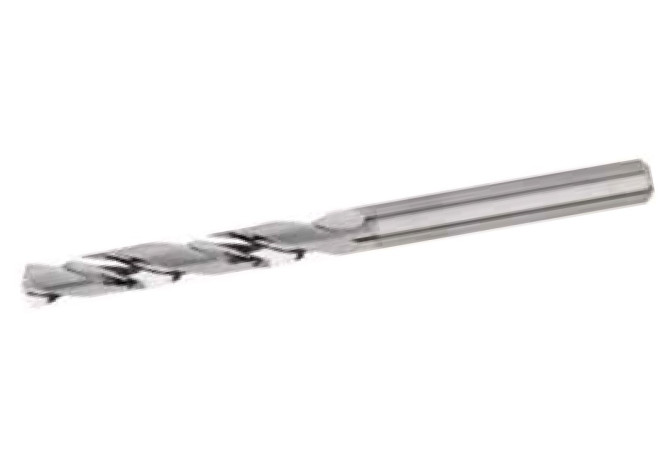

B285D07500HPS KN15

Артикул: B285D07500HPS KN15

В наличии

В корзину

Описание

Характеристики

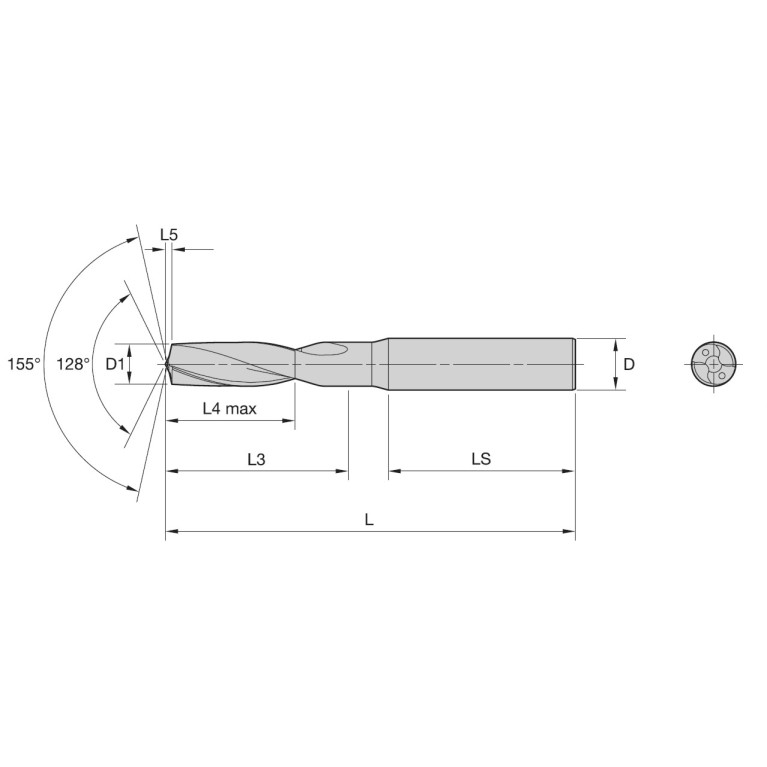

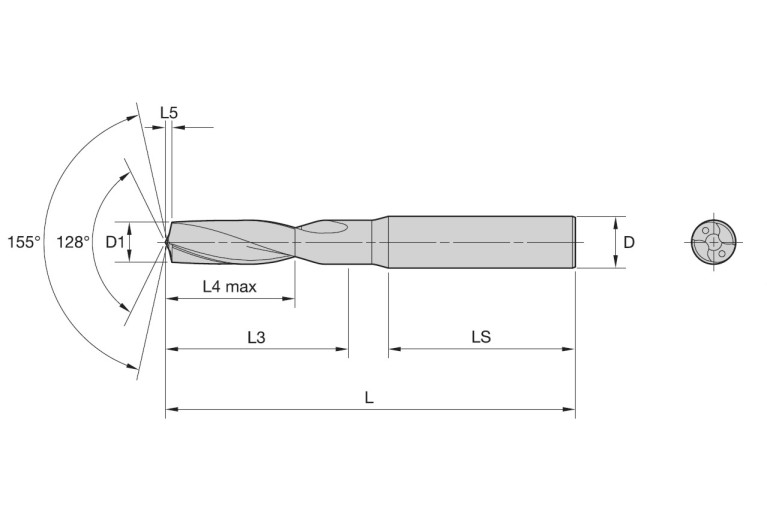

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

uncoated

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

7.5 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/5/2017

DIN

ZYL00800115

DRSYC Drill tool style code

1 - subland twist drill

FamilyProducts

HPS Beyond Drill for Aluminium with MQL, long

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KN15Beyond

GRDPRIO Standard designation of the grade main application

HC-N15

GRDSYC Grind style code

KH-HP

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

53 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LS Shank length

36 mm

LU Usable length

43 mm

Materials

Name Identifying order number

B285D07500HPS KN15

NOF Flute count

OAL Overall length

91 mm

PL Point length

1.4 mm

SIG Point angle 1st step

155 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN6537

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
