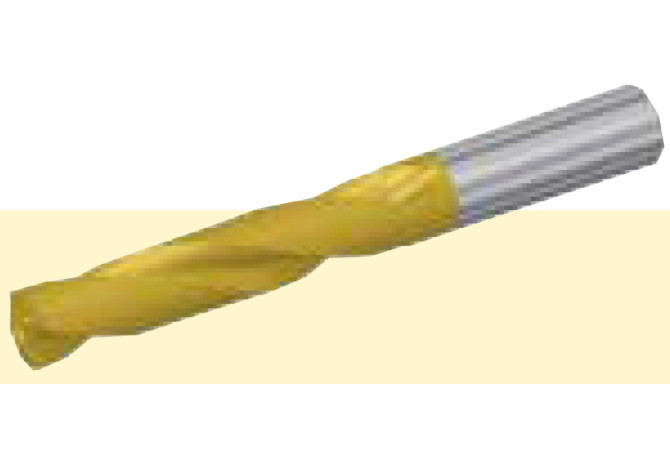

B211A13200HP KC7515

Артикул: B211A13200HP KC7515

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

13.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

11/15/2013

DIN

ZYL01400115

FamilyProducts

Vollhartmetallbohrer 5xD mit Innenkühlung

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC7515

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

77 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01400115

LPR Protruding length

79 mm

LS Shank length

45 mm

LU Usable length

60 mm

Materials

P,M,S

Name Identifying order number

B211A13200HP KC7515

NOF Flute count

OAL Overall length

124 mm

PL Point length

2.45 mm

SIG Point angle 1st step

135 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
