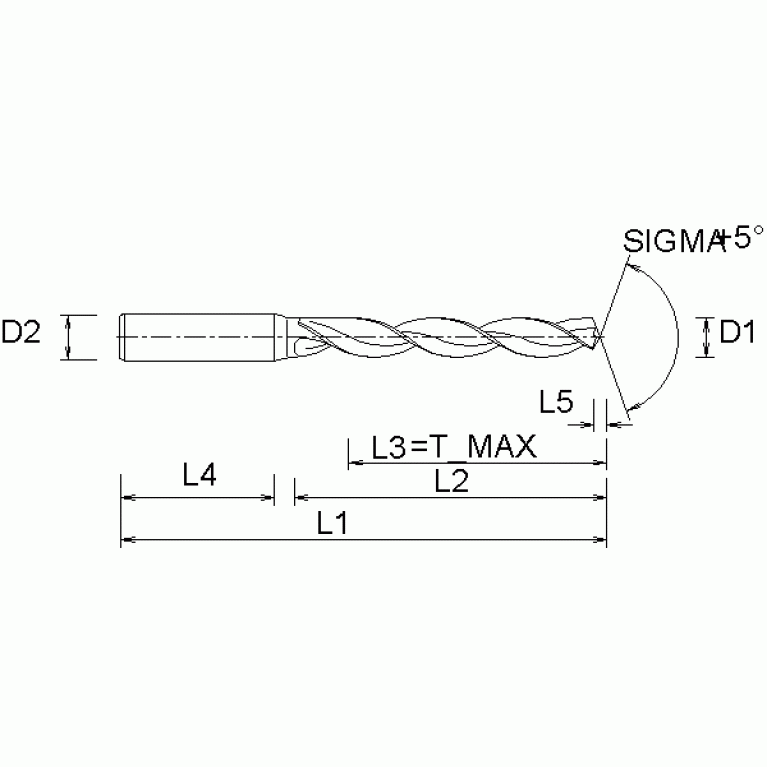

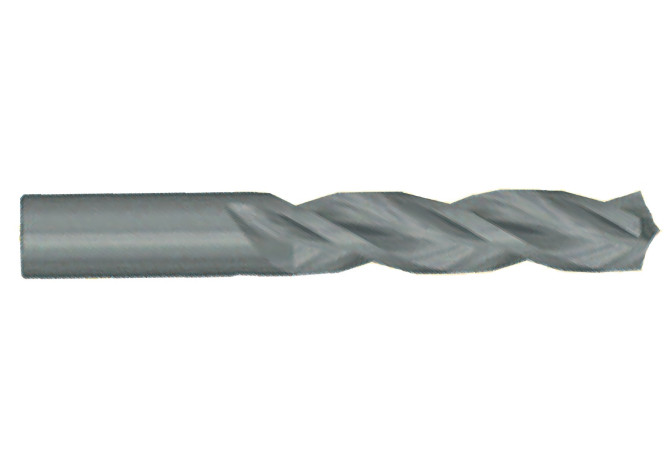

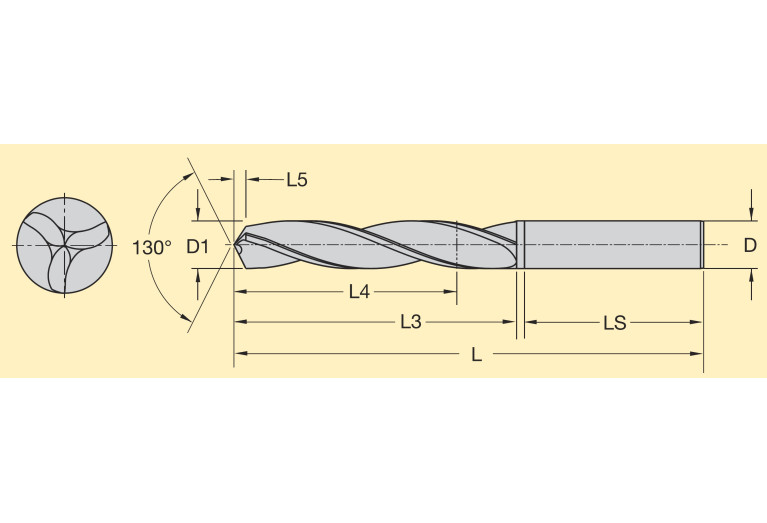

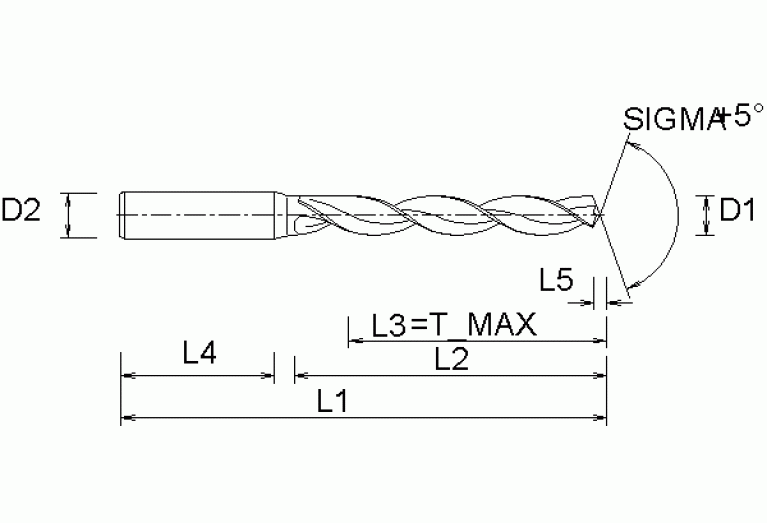

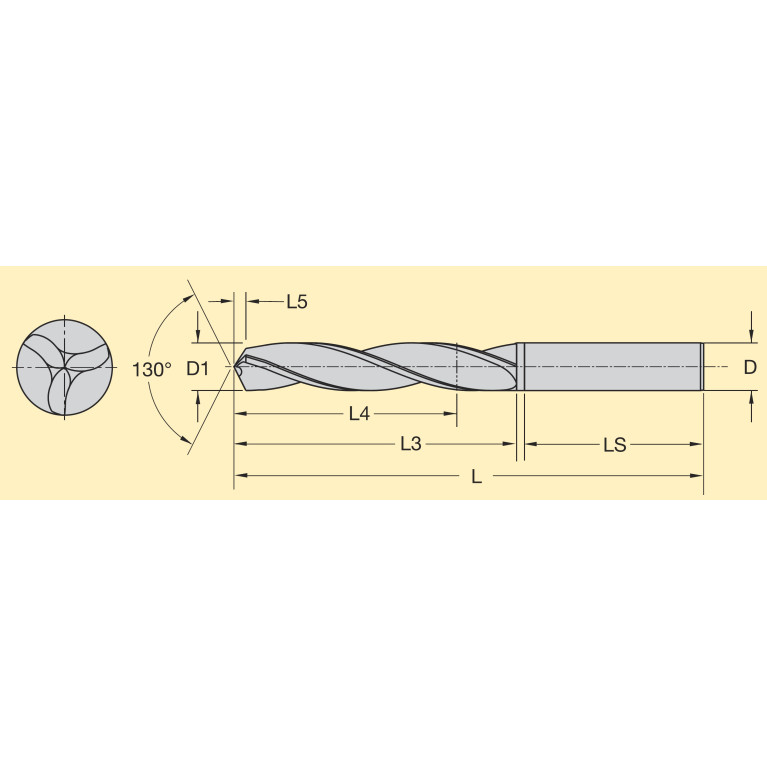

Главная Каталог продукции Toolunited 17 302-01 - Twist Drill B105A03500 KC7210

B105A03500 KC7210

Артикул: 1198992

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

ZYL00600105

FamilyProducts

TF-Bohrer für Guß

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KC7210

HAND Cutting direction

R - Right

ID Technical product number

1198992

Interface codes

J6 / J61

ISO

ZYL01F6000$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

28 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

ZYL01F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

30 mm

LS Shank length

36 mm

LU Usable length

23 mm

Materials

K,N

Name Identifying order number

B105A03500 KC7210

NOF Flute count

OAL Overall length

66 mm

PL Point length

0.87 mm

SIG Point angle 1st step

130 Degree

STDNO Standard

DIN6537

Working process

BVB - Drilling
