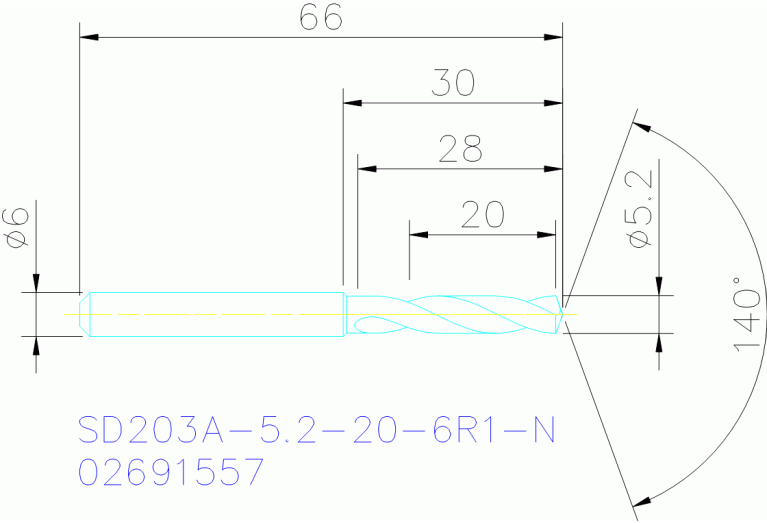

SD203A-5.2-20-6R1-N
SD203A-5.2-20-6R1-N
Артикул:
02691557
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
DC Cutting diameter minimum
5.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00600115
FamilyProducts
SD203A-5.2-20-6R1-N
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
02691557
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
28 mm
LF Functional length
65.05 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600115
LS Shank length
36 mm
LU Usable length
20 mm
Name Identifying order number
SD203A-5.2-20-6R1-N
NOF Flute count
2
OAL Overall length
66 mm
PL Point length
0.95 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
WT Weight of item
0.013 kg
