Главная Каталог продукции Toolunited 16 302-01 - Twist Drill 122608 8,4

122608 8,4

Артикул: 122608 8,4

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

COX

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

8.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01001015

FamilyProducts

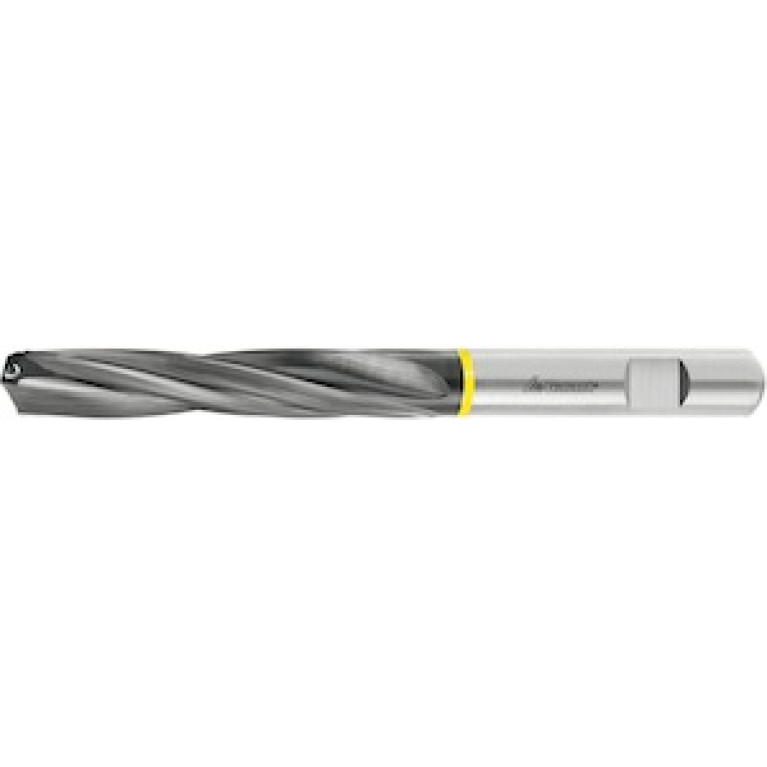

GARANT Solid carbide drill Weldon shank DIN 6535 HB

FHA Flute helix angle

15 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

61 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001015

LPR Protruding length

63 mm

LS Shank length

40 mm

LU Usable length

48.4 mm

Name Identifying order number

122608 8,4

NOF Flute count

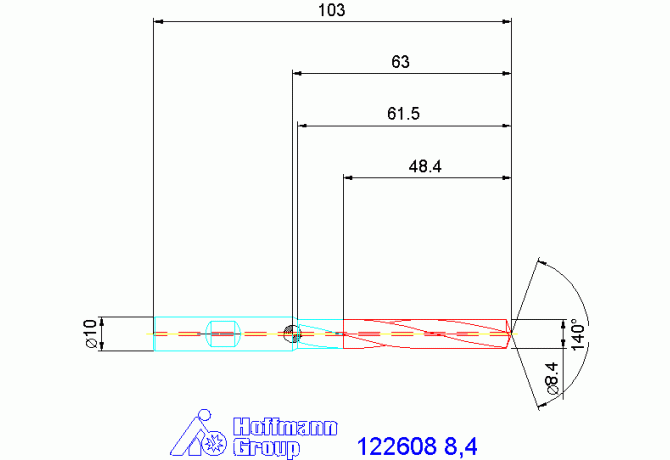

OAL Overall length

103 mm

PL Point length

1.5287 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.071 kg
