122306 14,5
122306 14,5
Артикул:
122306 14,5
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
1
CNSC Coolant entry style code
2 - With Coolant entry, radial
COATN Coating
DLC
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
14.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01600115
FamilyProducts

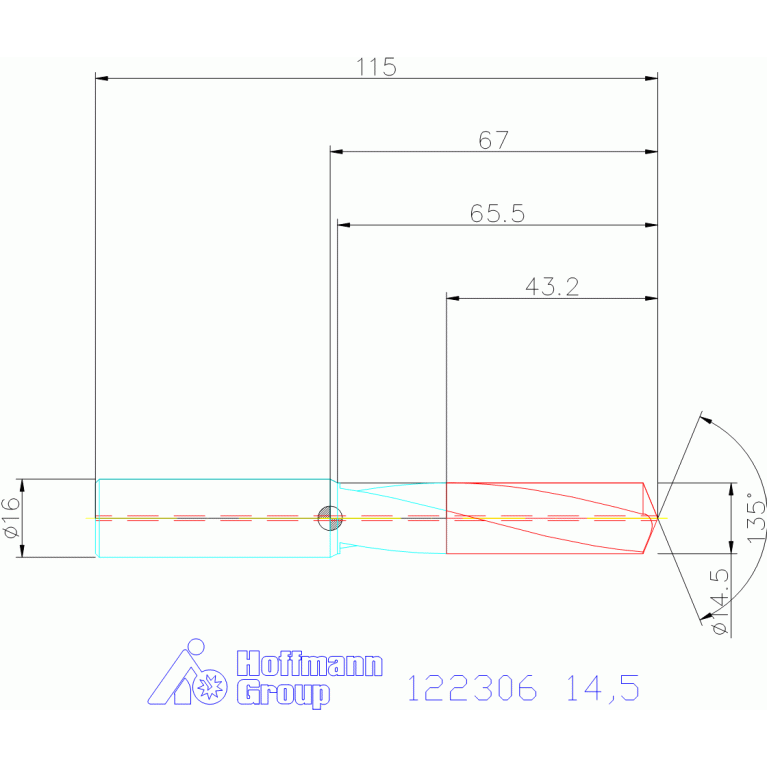

Solid carbide HPC drill, plain shank DIN 6535 HA
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
65 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LU Usable length
65 mm
Name Identifying order number
122306 14,5
NOF Flute count
2
OAL Overall length
115 mm
SIG Point angle 1st step
135 Degree
STDLET Standard letter to the standard number
K
STDNO Standard
DIN6537
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
