122250 9,4
122250 9,4
Артикул:
122250 9,4
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
9.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00940105
FamilyProducts
GARANT Solid carbide jobber drill
FHA Flute helix angle
32 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
81 mm
LF Functional length
122.1 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0094
LOC-03 DCONMS Diameter
9.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00940105
LPR Protruding length
86 mm
LS Shank length
44 mm
LU Usable length
70 mm
Name Identifying order number
122250 9,4
NOF Flute count
2

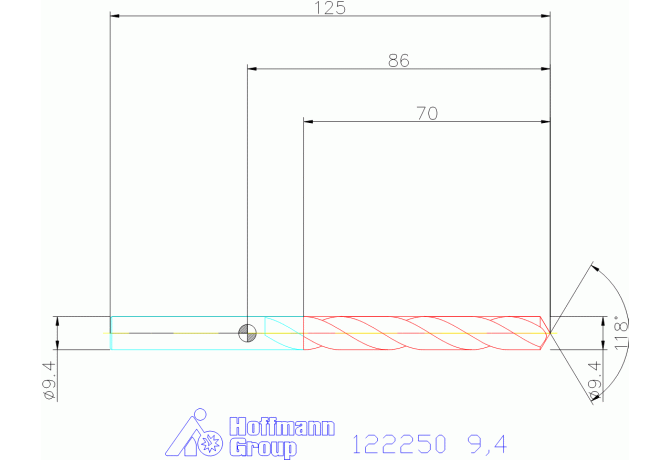

OAL Overall length
125 mm
PL Point length
2.9 mm
SIG Point angle 1st step
118 Degree
Working process
BVB - Drilling
WT Weight of item
0.087 kg
