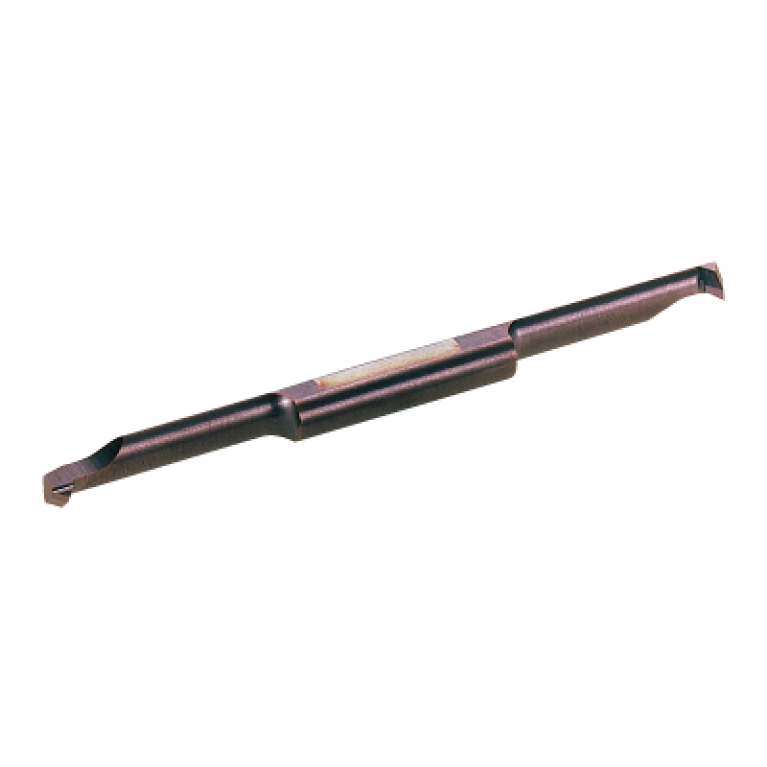

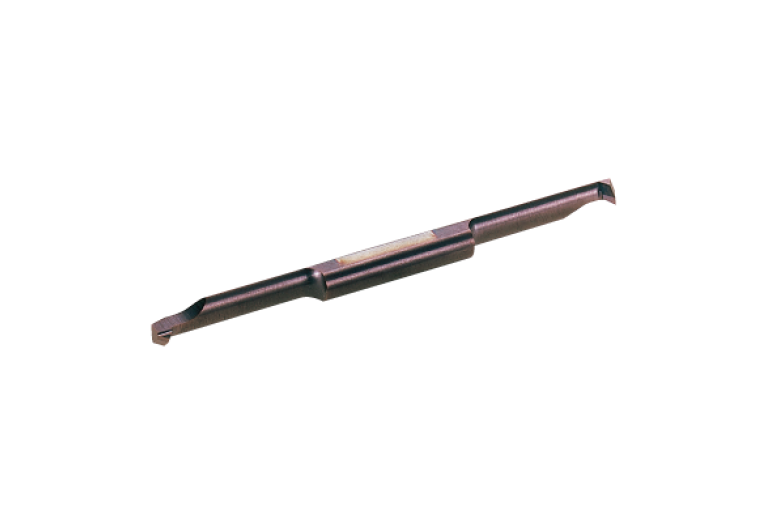

Главная Каталог продукции Toolunited 16 310-00 - Turning tool with carbide tips unspecified CT0305RS-M4 VP15TF

CT0305RS-M4 VP15TF

Артикул: 493191

В наличии

В корзину

Описание

Характеристики

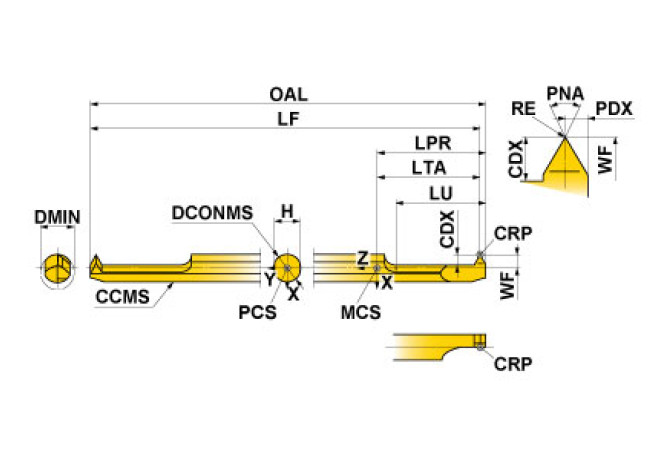

CDX Cutting depth maximum

6 mm

COMPC Company code

MI - Mitsubishi Materials

Delivery state valid from

4/1/2022

DIN

ZYL00302205

DMIN Minimum bore diameter

3 mm

FamilyProducts

threading,small tools

GRDMFG Grade manufacturers designation

VP15TF

HAND Cutting direction

R - Right

ID Technical product number

493191

Interface codes

J6 /

ISYC Subclass

310-00 - Turning tool with carbide tips unspecified

LF Functional length

50 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 H Shank height

2.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00302205

Name Identifying order number

CT0305RS-M4 VP15TF

OAL Overall length

50 mm

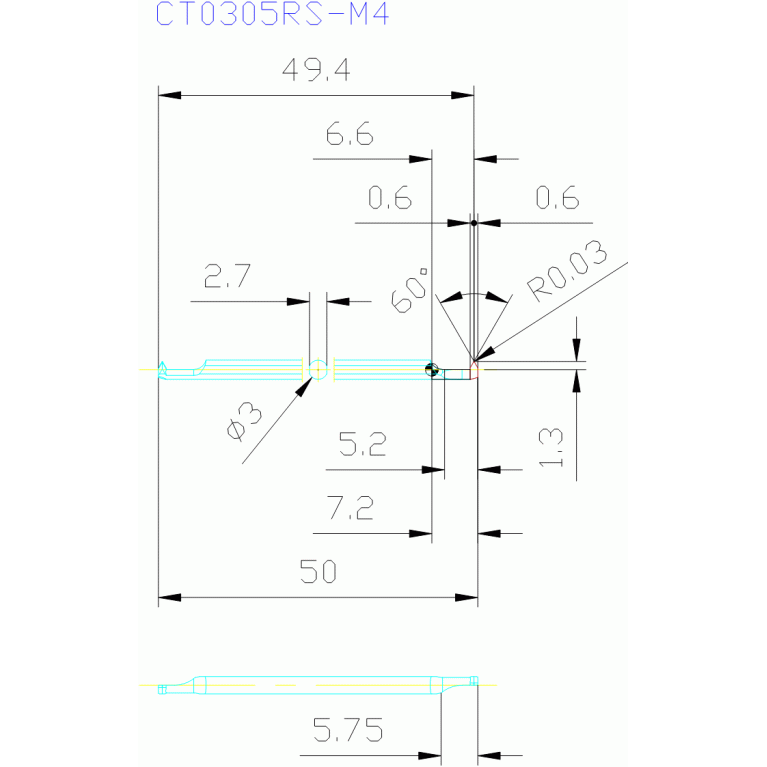

STDDES Standard designation

CT0305RS-M4

WF Functional width

1.3 mm

Working process

No working processes available
