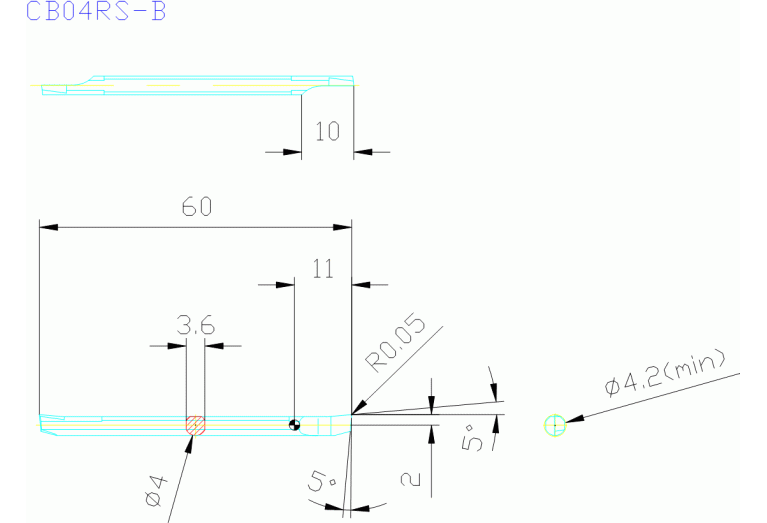

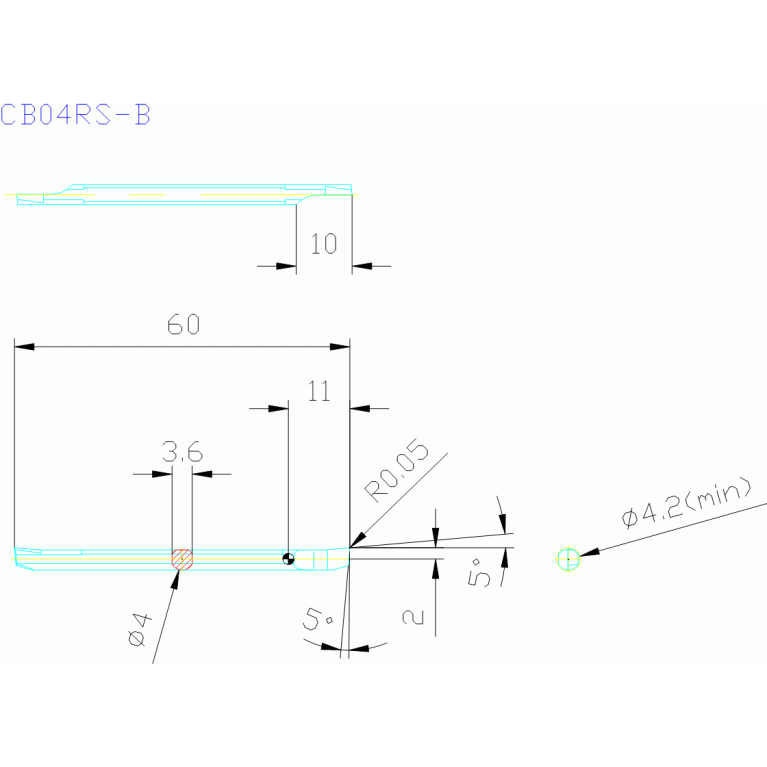

CB04RS-B TF15
CB04RS-B TF15
Артикул:
296892
В наличии
Характеристики
COMPC Company code
MI - Mitsubishi Materials
Delivery state valid from
4/1/2022
DIN
ZYL00402205
DMIN Minimum bore diameter
4.2 mm
FamilyProducts
boring,small tools
GRDMFG Grade manufacturers designation
TF15
HAND Cutting direction
R - Right
ID Technical product number
296892
Interface codes
J6 /
ISYC Subclass
310-09 - Internal turning tool no 9 - offset side cutting design
LF Functional length
60 mm
LH Head length
10 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 H Shank height
3.6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00402205
Name Identifying order number
CB04RS-B TF15
OAL Overall length
60 mm
STDDES Standard designation
CB04RS-B
WF Functional width
2 mm
Working process
No working processes available
